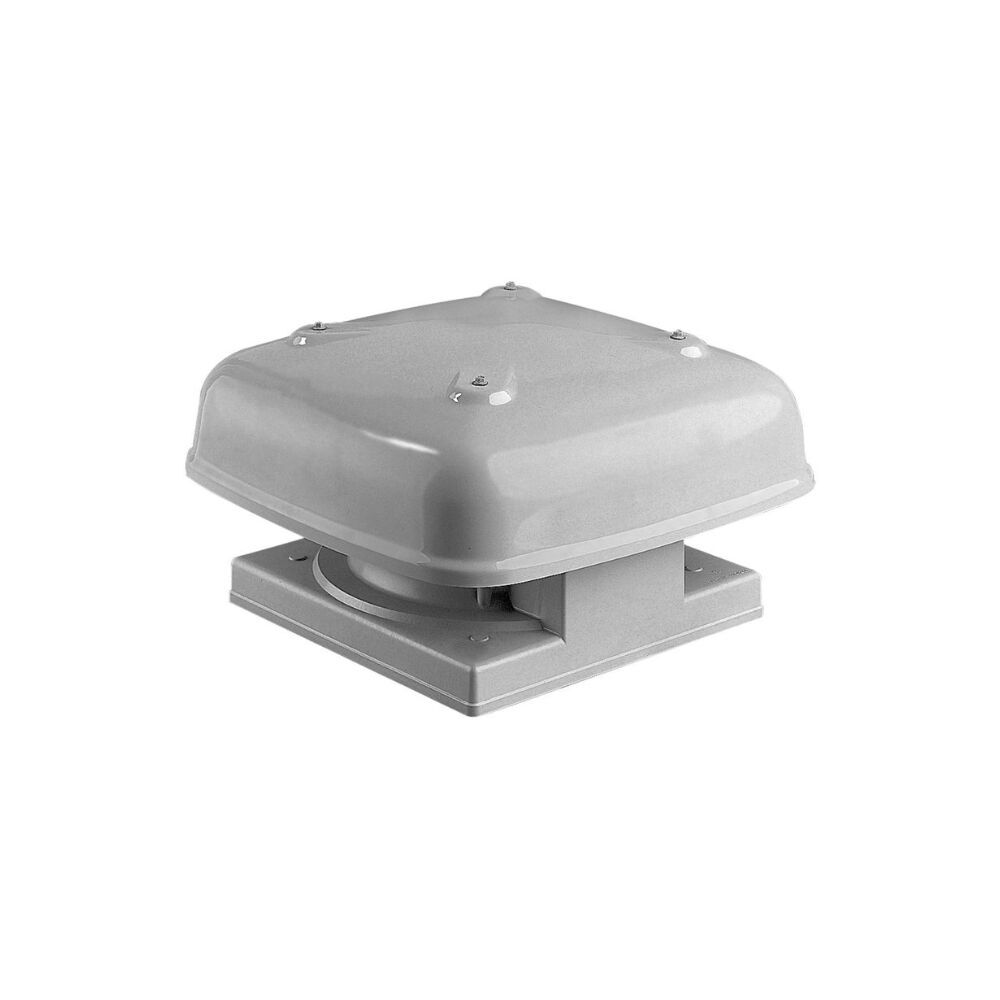

Fantech Minivent Roof Mounted Axial Exhaust Fans - MV302E | 300MM | 2 Pole | 1 Phase
Air Flow 2066 M³/H | Power Consumption 180W | IP44
Fantech Minivent Roof Mounted Axial Exhaust Fans - MV302E | 300MM |...
Product Overview
| Model Number | MV302E |
| Airflow (M³/H) | 180 |
| Duct Flange Size | 300MM (12" Inch) |
| Motor Type | AC |
| Exhaust Fan Power (W) | 180 |
| Noise Level | 55 dBA at 3M |
| IP Rating | IP44 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Backdraft Damper | Optional |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | Optional |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Fantech - 2 years warranty* |
Description
Description
The Fantech Minivent MV302E Roof Mounted Axial Exhaust Fan is a high-capacity solution for demanding domestic and commercial ventilation projects. Delivering an impressive 2066 M3/H airflow, it is ideal for large spaces requiring powerful extraction. Operating at 55 dB(A), it balances strength with dependable noise control. With a robust lightweight design, this unit is speed controllable, suitable for ducted systems, and can be mounted at angles up to 300. Built for single phase 240V operation and rated IP44, the MV302E ensures durability and long-lasting performance in Australian conditions.
Features
Features
- High airflow capacity of 2066 M³/H for large-scale ventilation requirements.
- Robust lightweight construction designed for durability and ease of installation.
- Speed controllable motor for adjustable performance.
- Suitable for ducted systems in domestic and commercial setups.
- Mountable at angles up to 30° for flexible positioning.
- Operates on single phase 240V for Australian power supply compatibility.
- Noise level of 55 dB(A) for reliable performance at scale.
- IP44 rated for protection against dust and moisture.
Specifications
Specifications
- Model: MV302E
- Air Flow: 2066 M³/H
- Noise Level: 55 dB(A) @ 3M
- Power Consumption: 180W
- Voltage: 240V

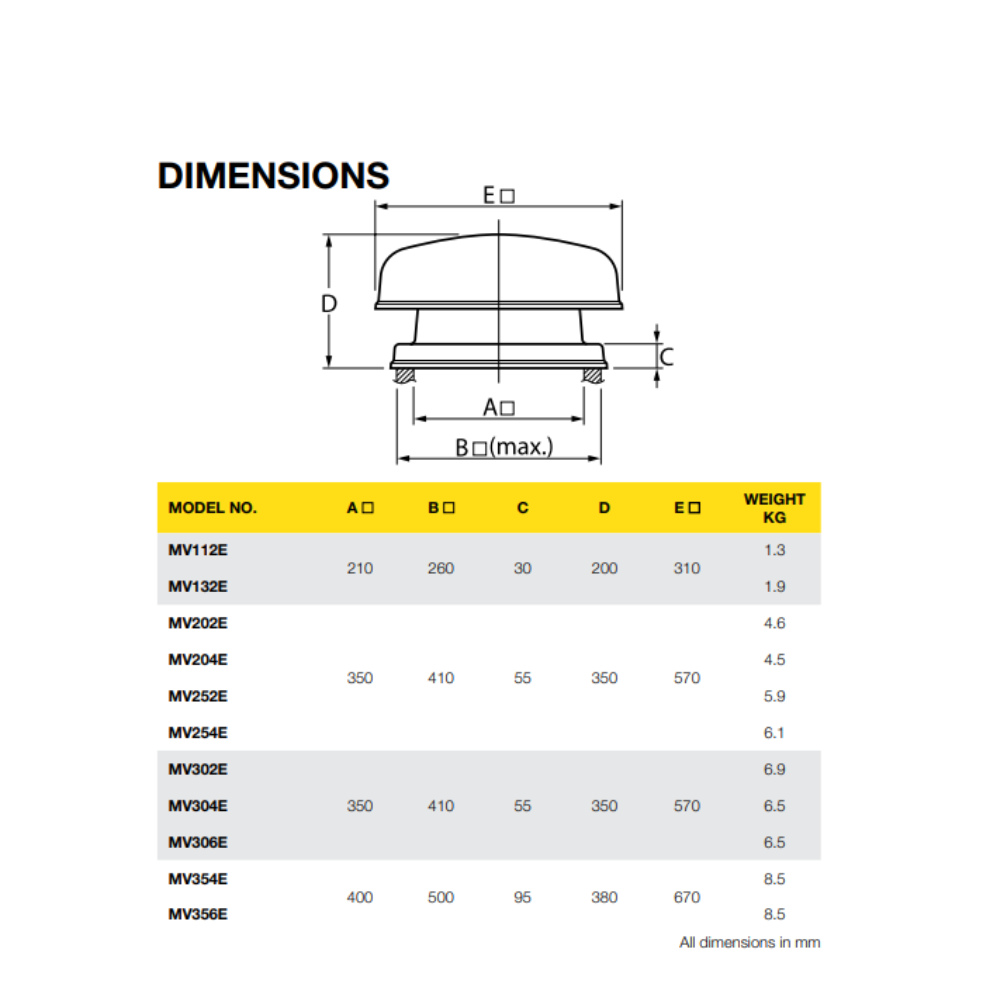

- Flange Size: 300MM (12" Inch)
- Poles: 2 Pole
- Phase: 1 Phase
- IP Rating: IP44
What's in the box
What's in the box
- [1] x Fantech Minivent Roof Mounted Axial Exhaust Fans - MV302E | 300MM | 2 Pole | 1 Phase
