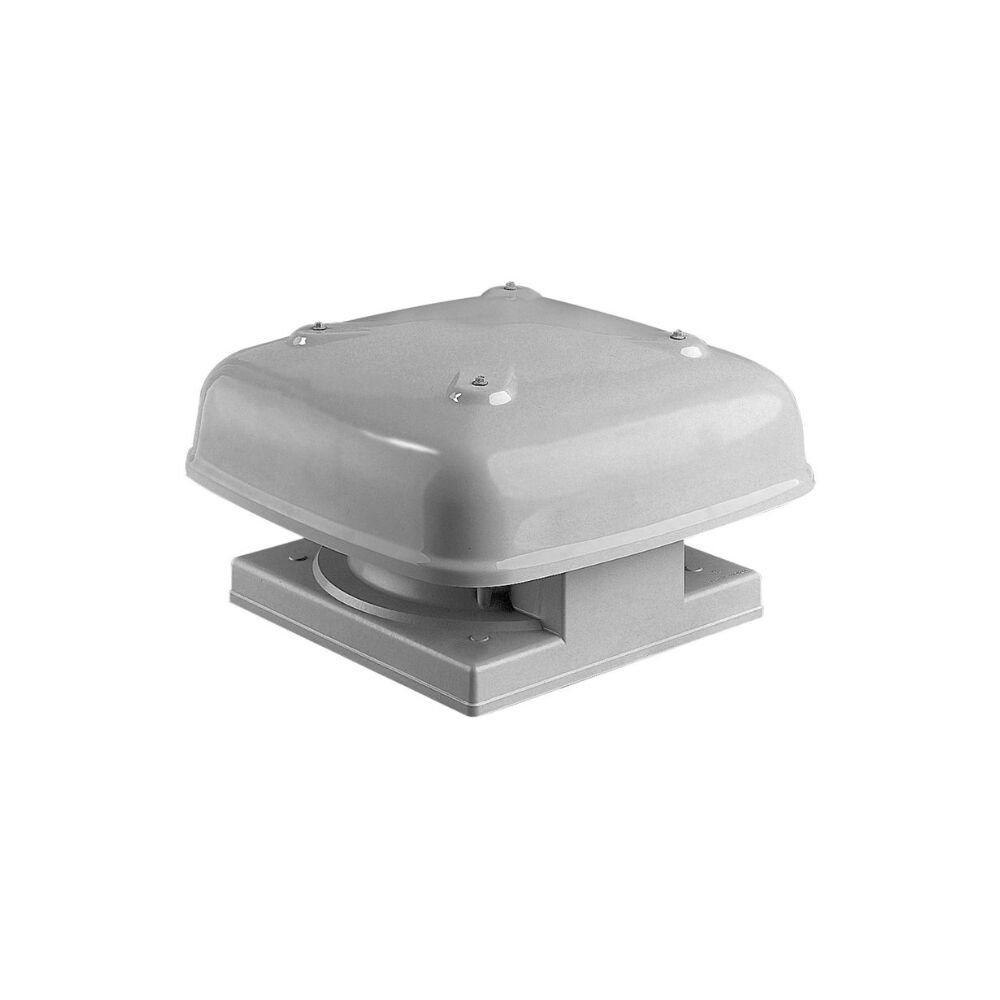

Fantech Minivent Roof Mounted Axial Exhaust Fans - MV304E | 300MM | 4 Pole | 1 Phase

The Fantech Minivent MV304E Roof Mounted Axial Exhaust Fan is designed for projects that require strong airflow with lower noise levels. Delivering 1303 M3/H capacity while consuming only 90W, it provides an efficient balance of performance and energy use. Operating at just 44 dB(A), the MV304E is quieter than the high-capacity 2-pole version, making it suitable for domestic and commercial applications in noise-sensitive environments. With a robust lightweight construction, this unit is speed controllable, duct system compatible, and can be mounted at angles up to 300. Built to IP44 standards, it is reliable under Australian conditions.

• Airflow of 1303 M³/H for effective medium-to-large space ventilation.
• Quiet operation at only 44 dB(A).
• Energy-efficient 90W motor with speed control capability.
• Robust lightweight construction for durability and easy installation.
• Compatible with ducted systems for versatile applications.
• Mountable up to 30° for flexible installation angles.
• Single phase 240V for standard Australian electrical supply.
• IP44 rated for protection against dust and moisture.

• Model: MV304E
• Air Flow: 1303 M³/H
• Noise Level: 44 dB(A) @ 3M
• Power Consumption: 90W
• Voltage: 240V

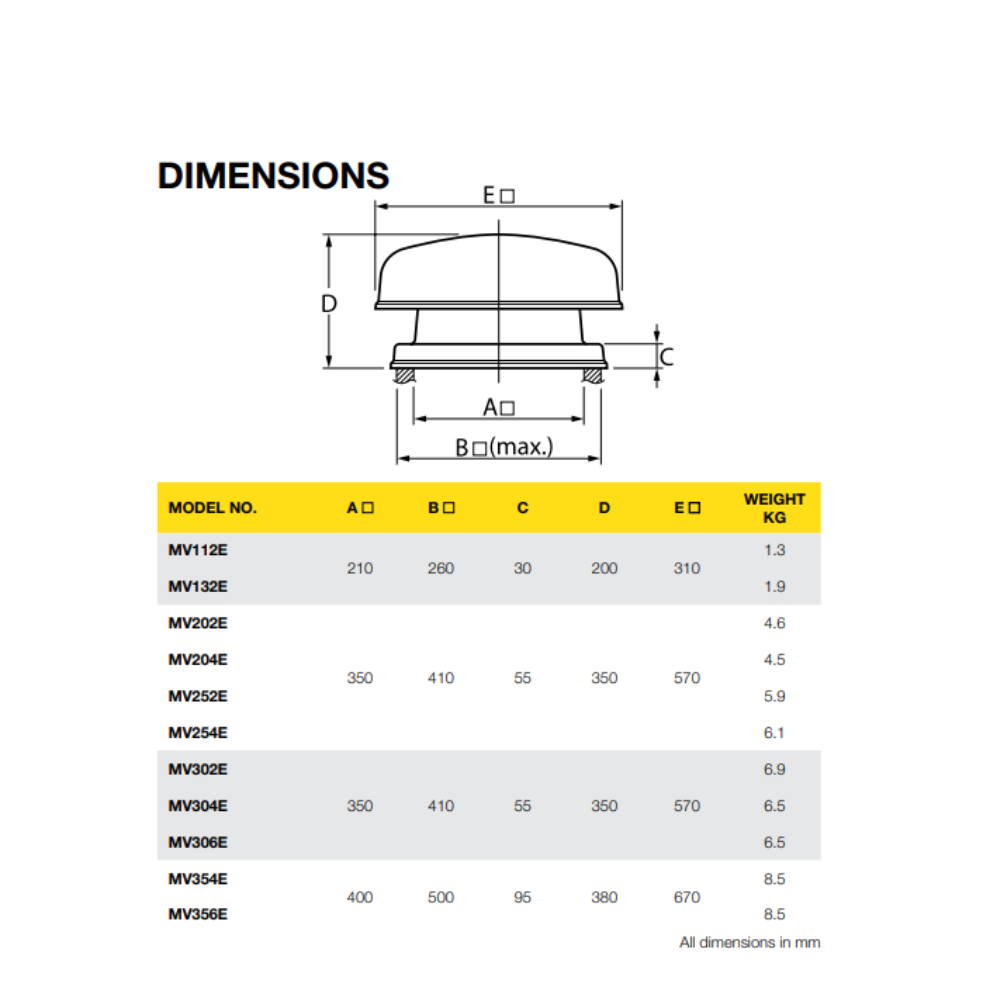

• Flange Size: 300MM (12" Inch)
• Poles: 4 Pole
• Phase: 1 Phase
• IP Rating: IP44

• [1] x Fantech Minivent Roof Mounted Axial Exhaust Fans - MV304E | 300MM | 4 Pole | 1 Phase
