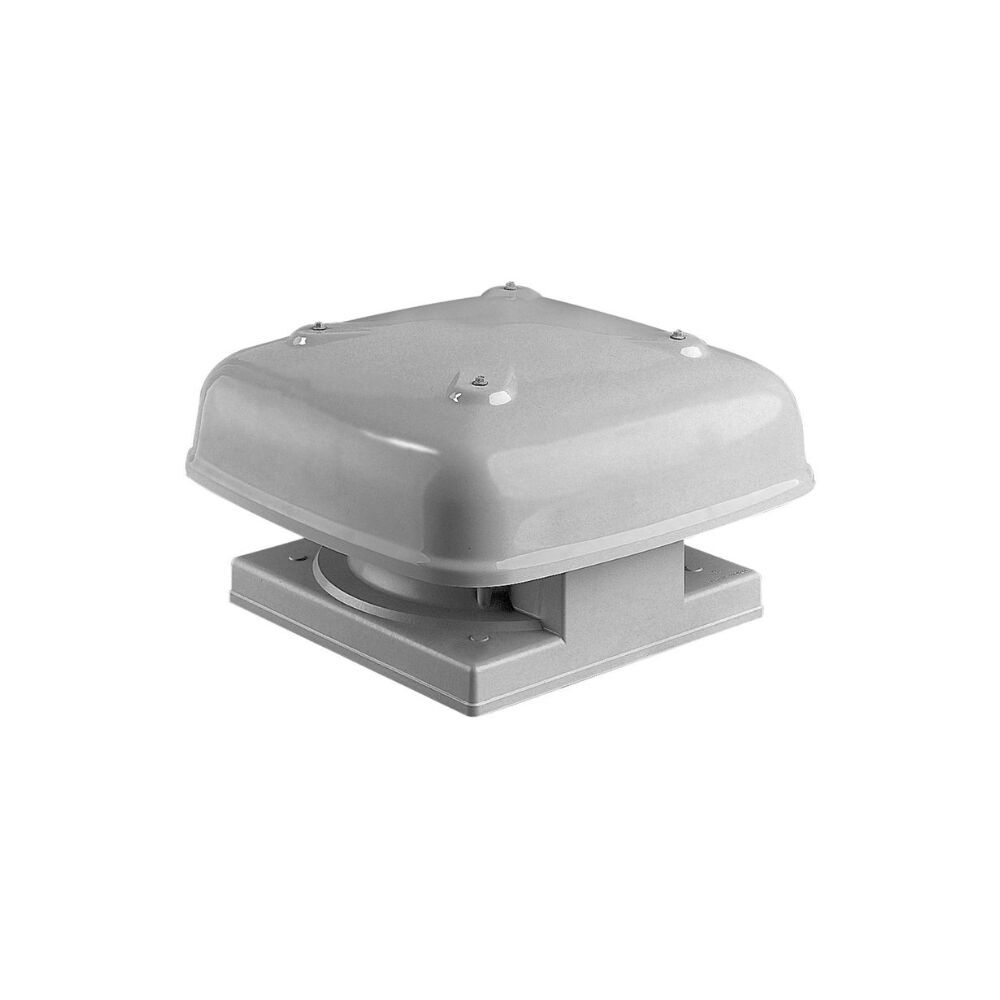

Fantech Minivent Roof Mounted Axial Exhaust Fans - MV306E | 300MM | 6 Pole | 1 Phase
Air Flow 882 M³/H | Power Consumption 50W | IP44
Fantech Minivent Roof Mounted Axial Exhaust Fans - MV306E | 300MM |...
Product Overview
| Model Number | MV306E |
| Airflow (M³/H) | 882 |
| Duct Flange Size | 300MM (12" Inch) |
| Motor Type | AC |
| Exhaust Fan Power (W) | 50 |
| Noise Level | 39 dBA at 3M |
| IP Rating | IP44 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Backdraft Damper | Optional |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | Optional |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Fantech - 2 years warranty* |
Description
Description
The Fantech Minivent MV306E Roof Mounted Axial Exhaust Fan is the quietest option in the 300MM Minivent range, making it ideal for noise-sensitive domestic and commercial applications. With an airflow performance of 882 M3/H and a low noise level of just 39 dB(A), it offers efficient ventilation without disruption. Consuming only 50W, the MV306E combines energy efficiency with dependable performance. Built with a robust lightweight design, this unit is speed controllable, suitable for ducted systems, and can be mounted at angles up to 300. Rated IP44, it is well protected against dust and moisture for long-lasting operation in Australian conditions.
Features
Features
- Ultra-quiet operation at only 39 dB(A).
- Airflow capacity of 882 M³/H for efficient medium-scale ventilation.
- Energy-efficient 50W motor with speed controllability.
- Robust lightweight construction for easy installation and durability.
- Suitable for ducted systems in both residential and commercial projects.
- Mountable at angles up to 30° for flexible installation.
- Operates on single phase 240V for Australian power supply compatibility.
- IP44 rated for dust and moisture protection.
Specifications
Specifications
- Model: MV306E
- Air Flow: 882 M³/H
- Noise Level: 39 dB(A) @ 3M
- Power Consumption: 50W
- Voltage: 240V
- Flange Size: 300MM (12" Inch)
- Poles: 6 Pole
- Phase: 1 Phase
- IP Rating: IP44
What's in the box
What's in the box
- [1] x Fantech Minivent Roof Mounted Axial Exhaust Fans - MV306E | 300MM | 6 Pole | 1 Phase
