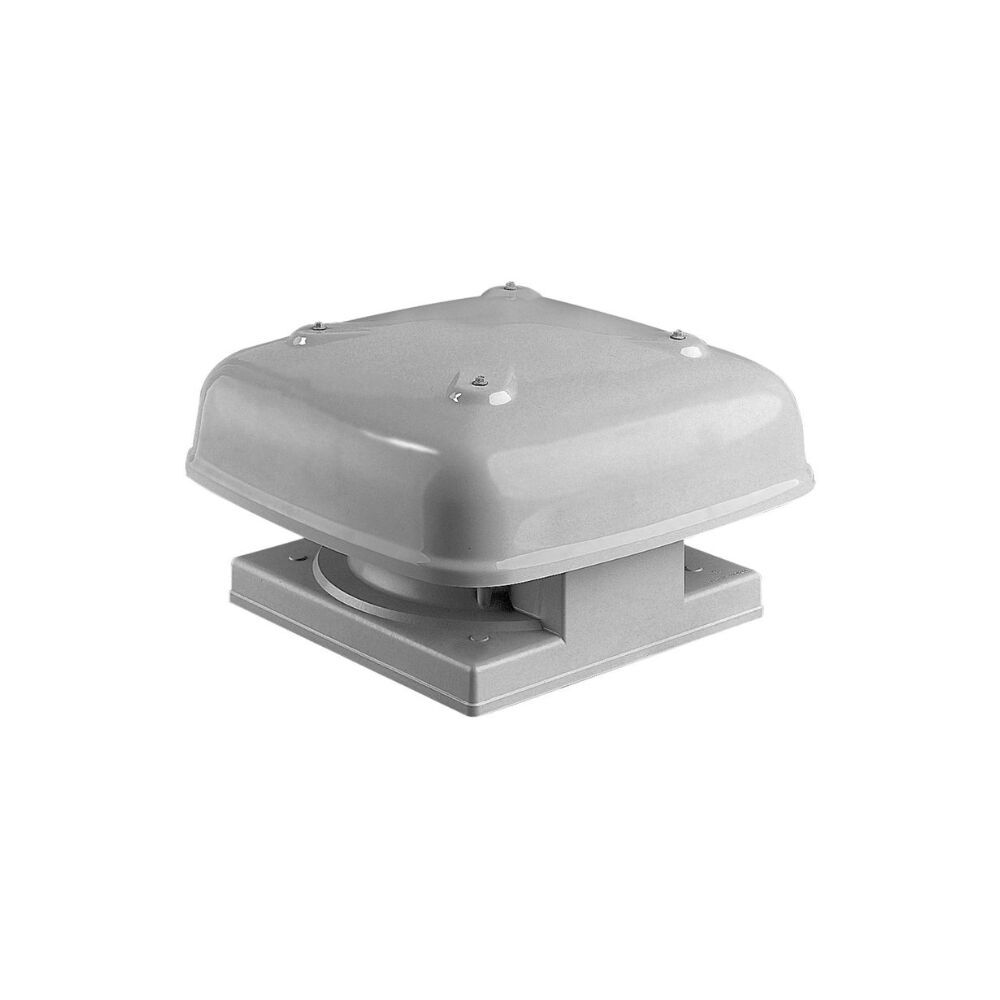

Fantech Minivent Roof Mounted Axial Exhaust Fans - MV356E | 350MM | 6 Pole | 1 Phase
Air Flow 1472 M³/H | Power Consumption 110W | IP44
Fantech Minivent Roof Mounted Axial Exhaust Fans - MV356E | 350MM |...
Product Overview
| Model Number | MV356E |
| Airflow (M³/H) | 1472 |
| Duct Flange Size | 350MM (14" Inch) |
| Motor Type | AC |
| Exhaust Fan Power (W) | 110 |
| Noise Level | 45 dBA at 3M |
| IP Rating | IP44 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Backdraft Damper | Optional |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | Optional |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Fantech - 2 years warranty* |
Description
Description
The Fantech Minivent MV356E Roof Mounted Axial Exhaust Fan is the quiet, energy-efficient choice in the 350MM Minivent range. With an airflow performance of 1472 M3/H and a low noise level of 45 dB(A), it provides powerful extraction while maintaining quiet operation, making it ideal for domestic and commercial applications where noise control is important. Consuming only 110W, the MV356E offers efficiency without compromising performance. Its robust lightweight design allows for easy installation, while the fan remains speed controllable, duct compatible, and mountable at angles up to 300. With IP44 protection and reliable single phase 240V operation, it is built for long-term durability in Australian environments.
Features
Features
- Airflow capacity of 1472 M³/H for medium-to-large space ventilation.
- Quiet operation at only 45 dB(A).
- Energy-efficient 110W motor with speed controllability.
- Robust lightweight construction for durability and easy installation.
- Suitable for ducted systems across domestic and commercial projects.
- Mountable at up to 30° for flexible installation angles.
- Operates on single phase 240V for Australian power compatibility.
- IP44 rated for resistance to dust and moisture.
Specifications
Specifications
- Model: MV356E
- Air Flow: 1472 M³/H
- Noise Level: 45 dB(A) @ 3M
- Power Consumption: 110W
- Voltage: 240V
- Flange Size: 350MM (14" Inch)
- Poles: 6 Pole
- Phase: 1 Phase
- IP Rating: IP44
What's in the box
What's in the box
- [1] x Fantech Minivent Roof Mounted Axial Exhaust Fans - MV356E | 350MM | 6 Pole | 1 Phase
