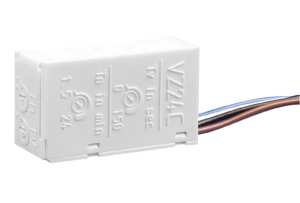

Fantech Run-on timer | Direct wired

The Fantech Run-On Timer is an essential control accessory designed to keep ventilation systems operating for a specified duration after a switch-off signal. Ideal for ensuring complete air extraction in bathrooms, laundries, or other ventilated zones, this timer provides delayed shutdown functionality to maintain airflow and prevent moisture buildup. Compatible with a wide range of Fantech fans, it is suitable for surface or equipment-enclosure mounting, ensuring installation flexibility across residential and commercial settings.

The timer operates on a 220-240V single-phase supply and is available in three models: VZ24C (adjustable run-on), VZ6 (6-minute fixed run-on), and VZ12 (12-minute fixed run-on), catering to varying control preferences and application requirements.

Features:

• Voltage and Frequency: 220-240V, single-phase, 50Hz
• Mounting Option: Can be installed within equipment or enclosures
• Compact Size: 32mm (W) x 13mm (H) x 17mm (D)
• Model VZ24C: Adjustable start delay (0-150 sec) and run-on timer (up to 24 min in 1.5 min increments)
• Model VZ6: Fixed 50 sec start delay with 6 min run-on
• Model VZ12: Fixed 50 sec start delay with 12 min run-on
• Current Load: Suitable for fans with a current draw from 0.075A to 1.25A
• Fan Compatibility: Compatible with DOM Series, Silent Design, Silent, HCM, Stylvent, ProVent, Rapid Response, Ezifit In-Wall, Ezifit Thru Roof, Vogue, and Ring Plate fans

• [1] x Fantech Run-on timer | Direct wired
