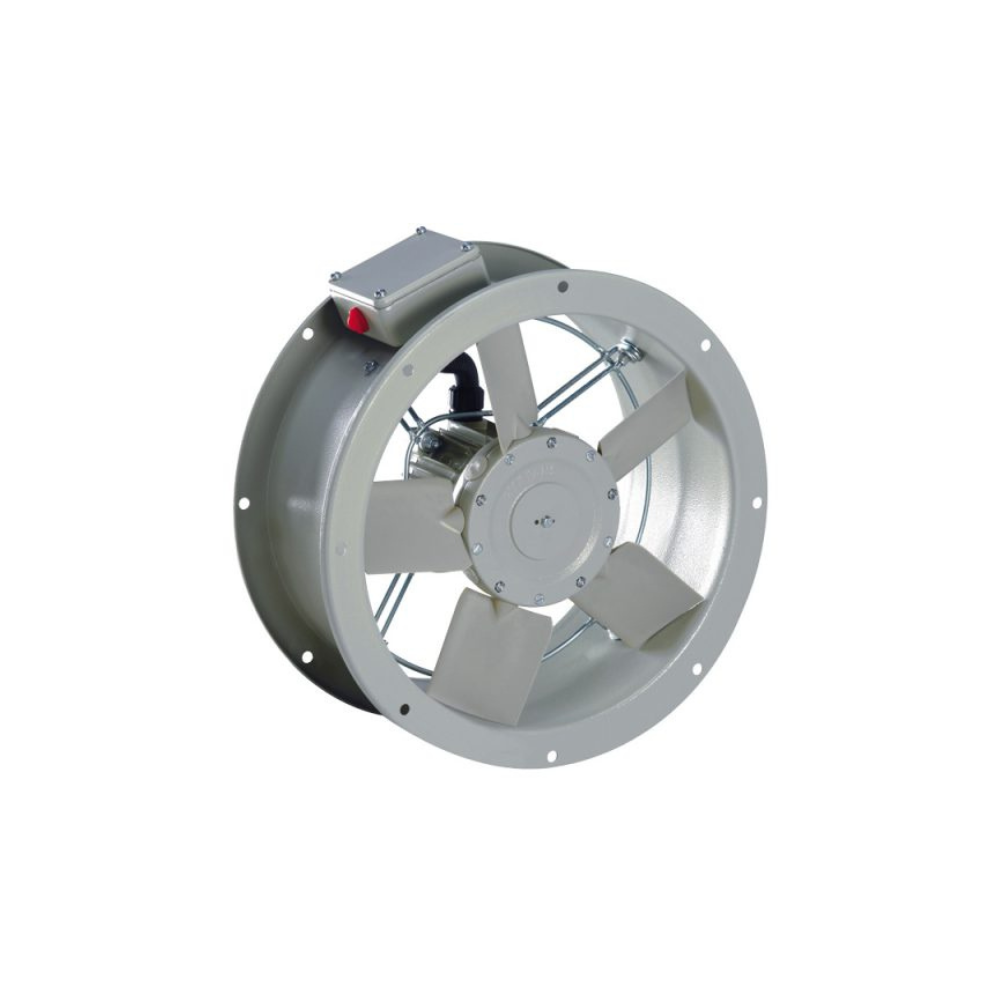

Fantech Short Case In-Line Duct Mounted Axial Fan - SCD314 | 310MM (12" Inch) | 4 Pole | 3 Phase

The Fantech Short Case In-Line Axial Fan SCD314 is engineered for efficient and reliable air movement in commercial and industrial ventilation systems. Featuring a 315MM (12" Inch) 4 Pole 3 Phase motor, it delivers an impressive airflow rate of 2099 M3/H with low operational noise at only 42 dB(A) @ 3m.

Constructed from galvanised steel with a polyester epoxy finish, this fan is both durable and corrosion-resistant. The GRP impeller blades ensure lightweight strength, while the IP55-rated motor provides excellent protection against dust and moisture.

The Short Case Axial Series offers speed-controllable options, integral thermal protection, and sealed-for-life ball bearings for dependable long-term performance. It is suitable for ducted installations in environments such as factories, warehouses, workshops, and air handling systems.

Compliant with ISO 5801:2004 airflow testing and BS848 noise standards, the Fantech SCD314 ensures safe, efficient, and quiet operation for professional-grade ventilation applications.

• Compact short case design - Ideal for space-restricted ducted systems.
• Light-weight and robust construction - Galvanised steel casing with polyester epoxy coating.
• Wide operating temperature range - Functions between -20°C and +70°C.
• 2-speed star/delta motor - Standard on most 415V 3-phase models.
• Integral thermal protection - Prevents overheating and ensures safe operation.
• Mountable in any position - Flexible installation for both supply and exhaust systems.
• IP55-rated enclosure - Resistant to dust and moisture ingress.
• Complies with ISO and BS standards - Tested for both airflow and noise levels.

• Model: SCD314
• Air Flow: 2099 M³/H
• Power Consumption: 120W
• Motor Type: 3 Phase, 4 Pole
• Sound Level: 42 dB(A) @ 3m
• Operating Temperature: -20°C to +70°C

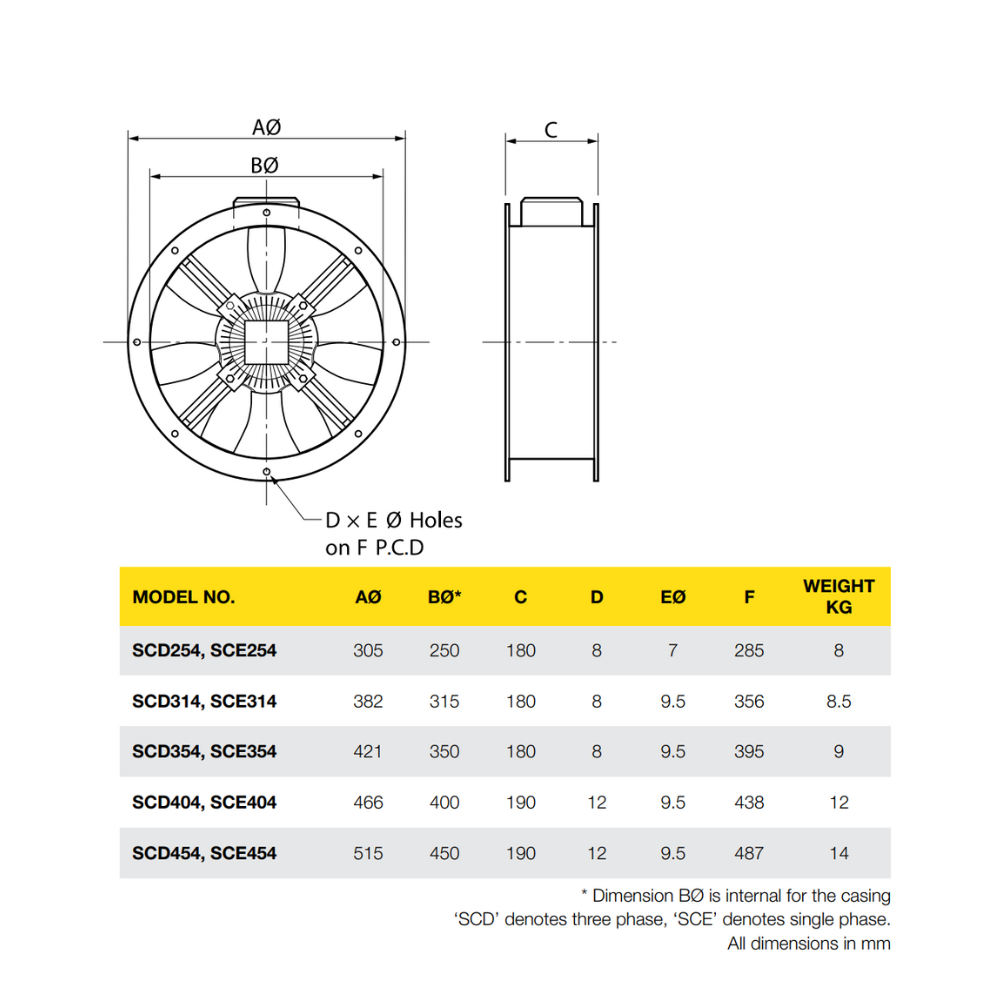

• Flange Size: 315MM (12" Inch)
• Casing Material: Galvanised Steel with Polyester Epoxy Finish
• Impeller: GRP (Glass Reinforced Plastic)
• Weight: 8.5 kg
• IP Rating: IP55
• Thermal Protection: Integral
• Bearings: Sealed-for-life ball bearings
• Standards: ISO 5801:2004, BS848: Part 2, 1985

• [1] x Fantech Short Case In-Line Duct Mounted Axial Fan - SCD314 | 310MM (12" Inch) | 4 Pole | 3 Phase

• Specification Sheet - Click Here
