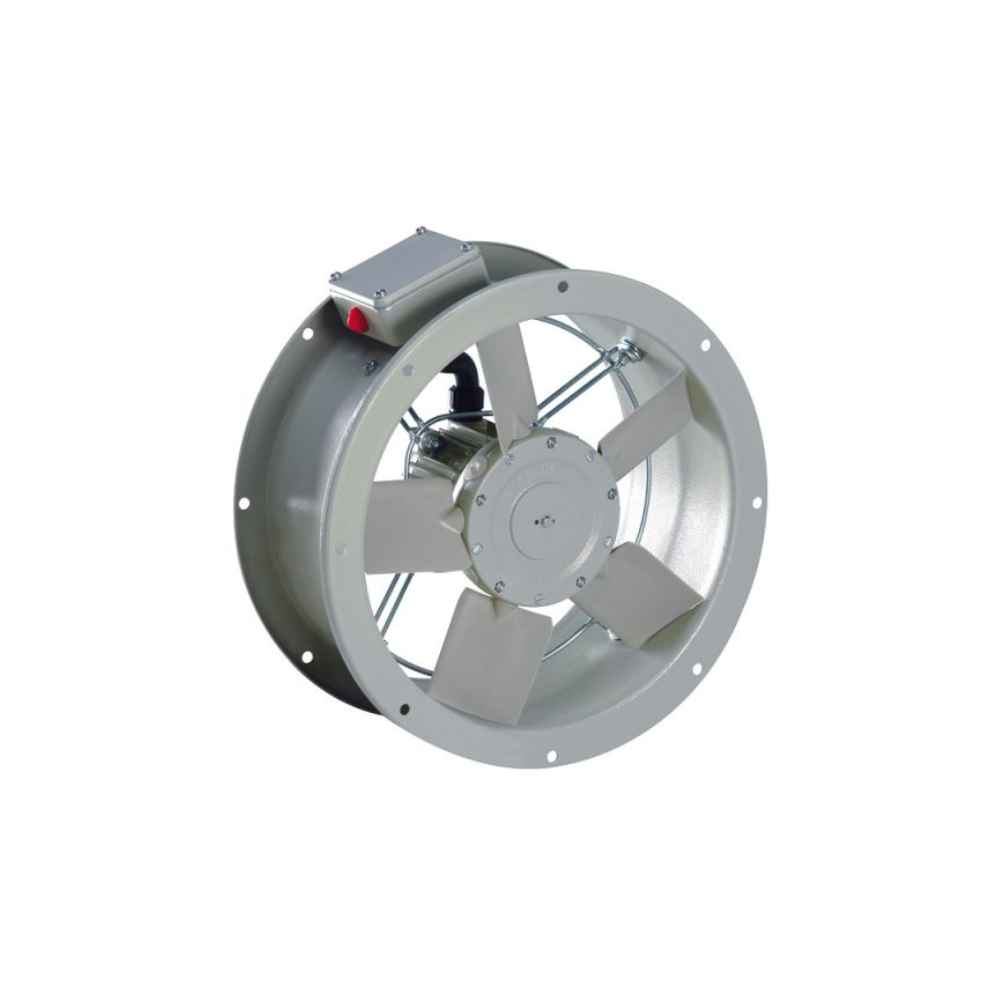

Fantech Short Case In-Line Duct Mounted Axial Fan - SCD354 | 350MM (14" Inch) | 4 Pole | 3 Phase

The Fantech Short Case In-Line Axial Fan SCD354 is designed for performance, efficiency, and durability in commercial and industrial ducted ventilation systems. With a 350MM (14" Inch) 4 Pole 3 Phase motor, it delivers an impressive airflow capacity of 2686 M3/H while maintaining a quiet sound level of 45 dB(A) @ 3m.

This fan is part of Fantechs Short Case Axial Series, engineered for applications requiring compact and robust air movement solutions. The galvanised steel casing with a polyester epoxy finish provides exceptional protection against corrosion, and the GRP impeller blades ensure long-term performance and strength.

The SCD354 includes integral thermal protection, sealed-for-life ball bearings, and IP55-rated protection for reliable operation in harsh environments. Suitable for ambient temperatures between -200C and +700C, it can be mounted in any position to suit your ventilation layout.

Tested to ISO 5801:2004 airflow standards and BS848 noise standards, this model is perfect for use in workshops, factories, warehouses, and HVAC systems where efficient ducted air movement is essential.

• Compact short case design - Ideal for installation in tight ducted ventilation systems.
• Light-weight but durable build - Galvanised steel casing with polyester epoxy finish.
• High-performance GRP impeller - Ensures strength and efficiency.
• 2-speed star/delta motor - Fitted to most 415V 3-phase models.
• Integral thermal protection - Guards the motor from overheating.
• IP55 enclosure rating - Protects against dust and moisture.
• Mountable in any orientation - Suits both horizontal and vertical installations.
• Noise-tested and airflow-rated - Certified to ISO 5801:2004 and BS848: Part 2, 1985.

• Model: SCD354
• Air Flow: 2686 M³/H
• Power Consumption: 120W
• Motor Type: 3 Phase, 4 Pole
• Sound Level: 45 dB(A) @ 3m
• Operating Temperature: -20°C to +70°C

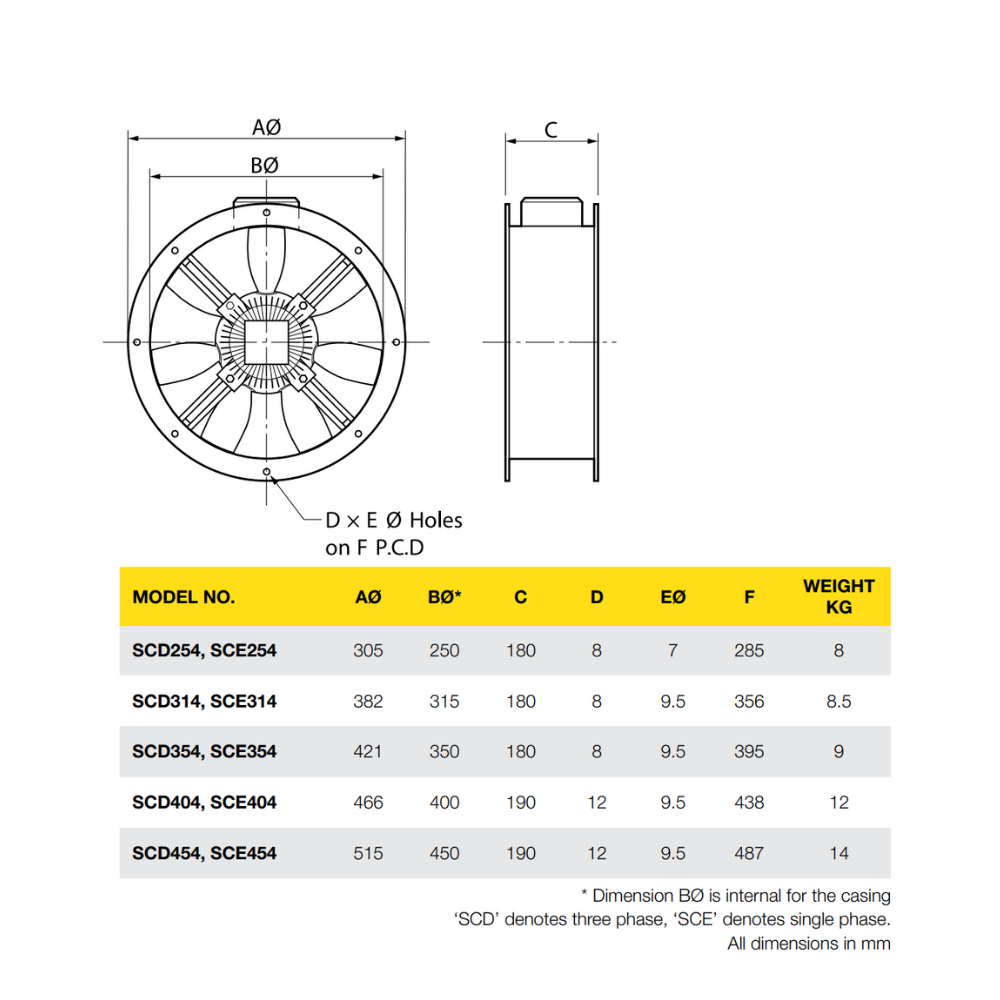

• Flange Size: 350MM (14" Inch)
• Casing Material: Galvanised Steel with Polyester Epoxy Finish
• Impeller: GRP (Glass Reinforced Plastic)
• Weight: 9.0 kg
• IP Rating: IP55
• Thermal Protection: Integral
• Bearings: Sealed-for-life ball bearings
• Compliance: ISO 5801:2004, BS848: Part 2, 1985

• [1] x Fantech Short Case In-Line Duct Mounted Axial Fan - SCD354 | 350MM (14" Inch) | 4 Pole | 3 Phase

• Specification Sheet - Click Here
