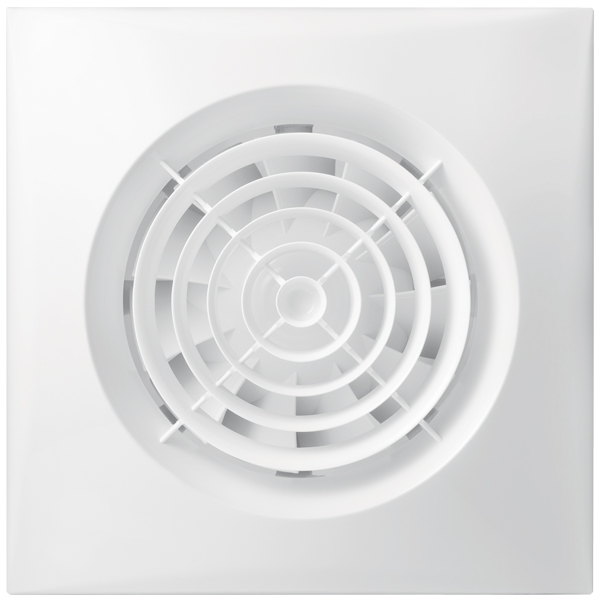

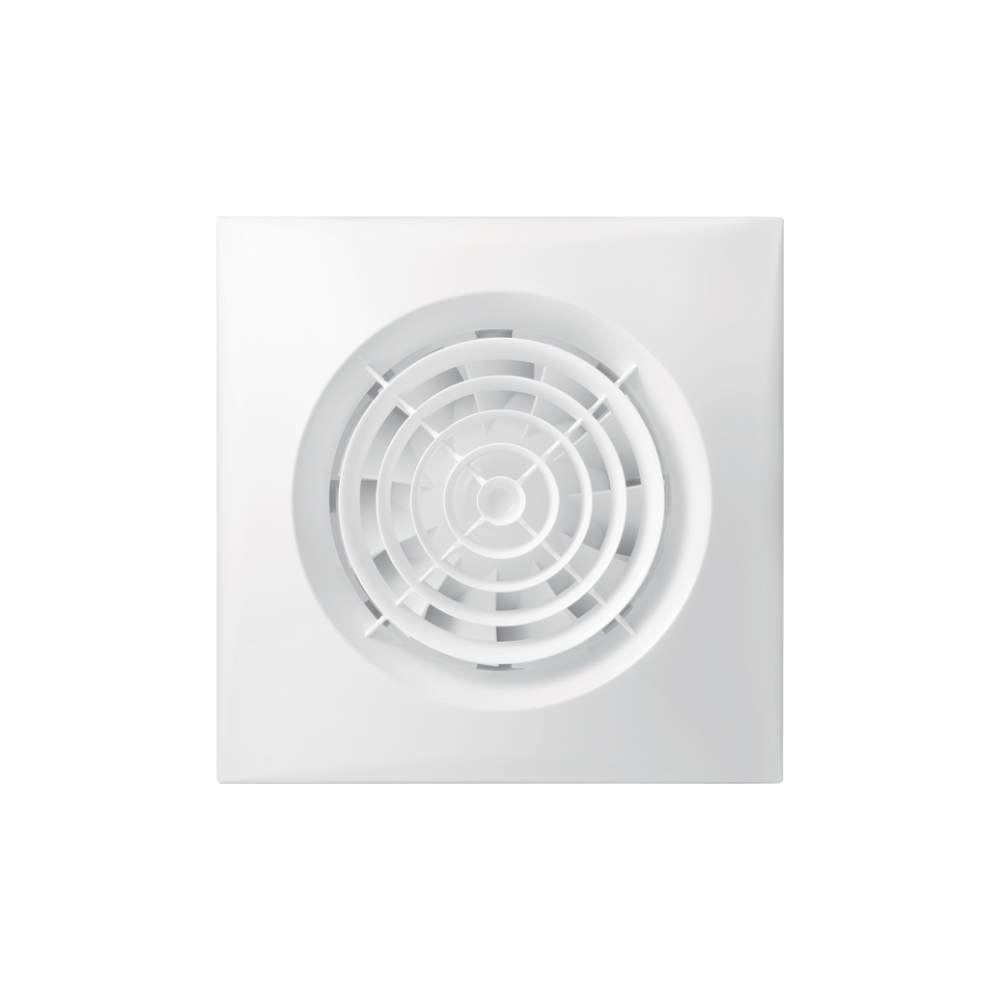

Fantech Silent Wall/Ceiling Mounted Fan With Backdraft Damper - 100MM / 125MM / 150MM
Ultra Quiet | Backdraft Damper | 100–150MM | Wall/Ceiling Mount
Description
Description
The Fantech Silent Series Wall/Ceiling Mounted Fan is an advanced, high-performance ventilation solution designed for bathrooms, ensuites, and toilets. Engineered for silent operation, this fan integrates an innovative vibration-absorbing design that significantly reduces noise while maintaining powerful airflow. Its robust motor and impeller system ensure efficient and reliable air extraction, enhancing indoor air quality and comfort.
Each model in the Silent Series includes a low-loss foil backdraft damper to prevent unwanted air return and internal thermal motor cut-out protection for added safety. Available in three sizes - 100MM, 125MM, and 150MM - the Silent Series caters to varying ventilation needs with consistent reliability.
Features:
- Exceptionally Quiet Operation: Designed with vibration and noise-absorbing components for near-silent performance.
- High Airflow Efficiency: Rapidly removes moist or stale air, improving ventilation in enclosed spaces.
- Integrated Backdraft Damper: Prevents reverse airflow, maintaining indoor air quality.
- Thermal Motor Protection: Safeguards the fan from overheating for prolonged durability.
- Versatile Installation: Suitable for wall or ceiling mounting in residential wet areas.
Features
Features
Specifications
Specifications
Model No. | Backdraft Damper | Humidistat | Run-on Timer | m³/hr† | L/sec† | Fan Speed (rpm) | Avg. dB(A) @ 3m | Watts | Volts | IP Rating |
---|---|---|---|---|---|---|---|---|---|---|
SILENT-100S-W | Yes | No | No | 95 | 26 | 2400 | 27 | 8 | 230 | IP45 |
SILENT-125S-W | Yes | No | No | 175 | 48 | 2350 | 33 | 16 | 230 | IP45 |
SILENT-150S-W | Yes | No | No | 280 | 78 | 1700 | 32 | 29 | 230 | IP45 |
What's in the box
What's in the box
[1] x Fantech Silent Wall/Ceiling Mounted Fan With Backdraft Damper - 100MM / 125MM / 150MM
Downloads
Downloads

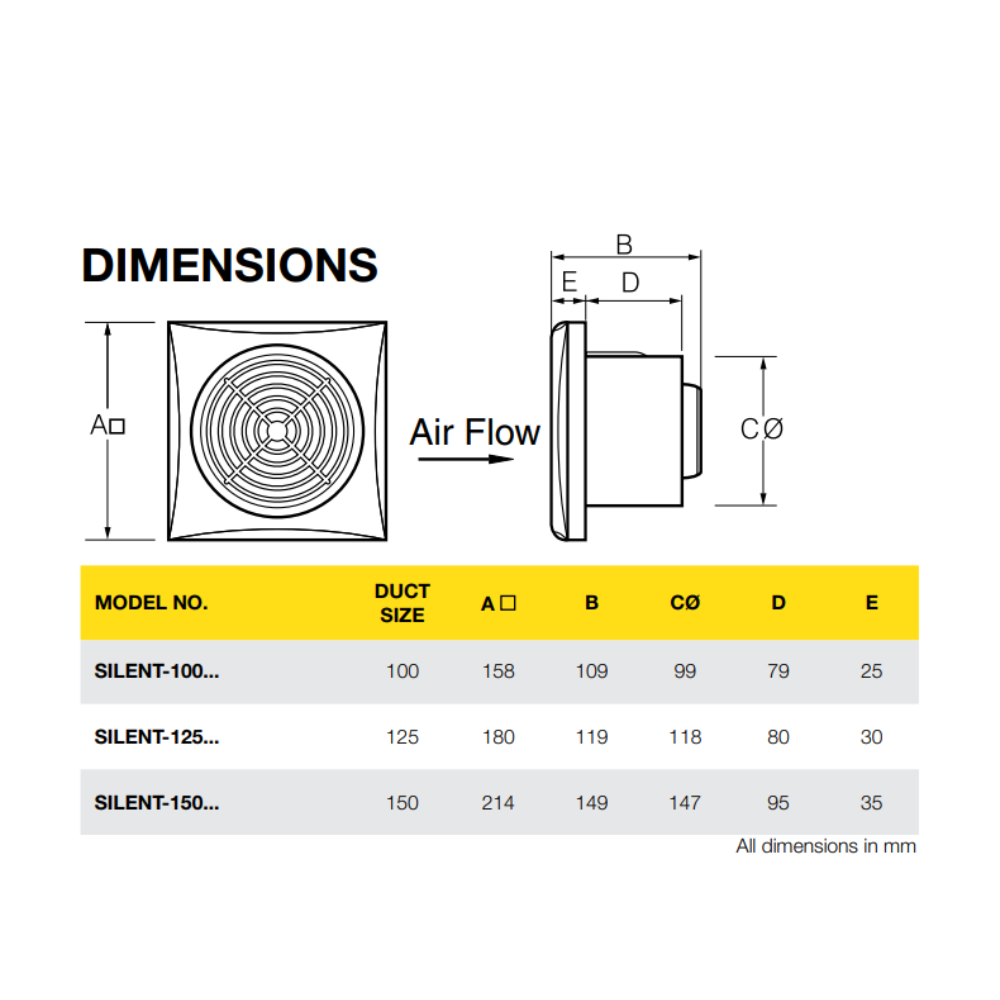

- Specification Sheet - Click Here
