Fantech Speed Controller Switch - 2A / 2.8A / 5A / 8A
Fantech Speed Controller Switch - 2A / 2.8A / 5A / 8A
Description
Description
The Fantech Speed Controller Switch is a high-quality wall-mounted unit designed to offer precise control over fan speed in single-phase, 240V systems. Featuring an integrated on/off switch, this controller allows infinite speed variation from full power (100%) down to approximately 30%, making it ideal for ventilation systems requiring variable air flow.
Available in four current ratings 2A, 2.8A, 5A, and 8A this range accommodates a variety of fan types and usage intensities. Select models include an LED power light for easy status identification. Whether managing one or multiple fans, this controller ensures reliable and efficient operation when fans are wired in parallel. For safety and performance, ensure the total full load amps of connected fans does not exceed 85% of the controller's maximum rated current.
Features
Features
The Fantech Speed Controller Switch is a high-quality wall-mounted unit designed to offer precise control over fan speed in single-phase, 240V systems. Featuring an integrated on/off switch, this controller allows infinite speed variation from full power (100%) down to approximately 30%, making it ideal for ventilation systems requiring variable air flow.
Available in four current ratings - 2A, 2.8A, 5A, and 8A - this range accommodates a variety of fan types and usage intensities. Select models include an LED power light for easy status identification. Whether managing one or multiple fans, this controller ensures reliable and efficient operation when fans are wired in parallel. For safety and performance, ensure the total full load amps of connected fans does not exceed 85% of the controller's maximum rated current.
Specifications
Specifications
| Part No. | Max. Amps | LED power light |
|---|---|---|
| VA2.0 | 2.0 | No |
| VA2.8 | 2.8 | Yes |
| VA5.0 | 5.0 | No |
| VA8.0 | 8.0 | Yes |

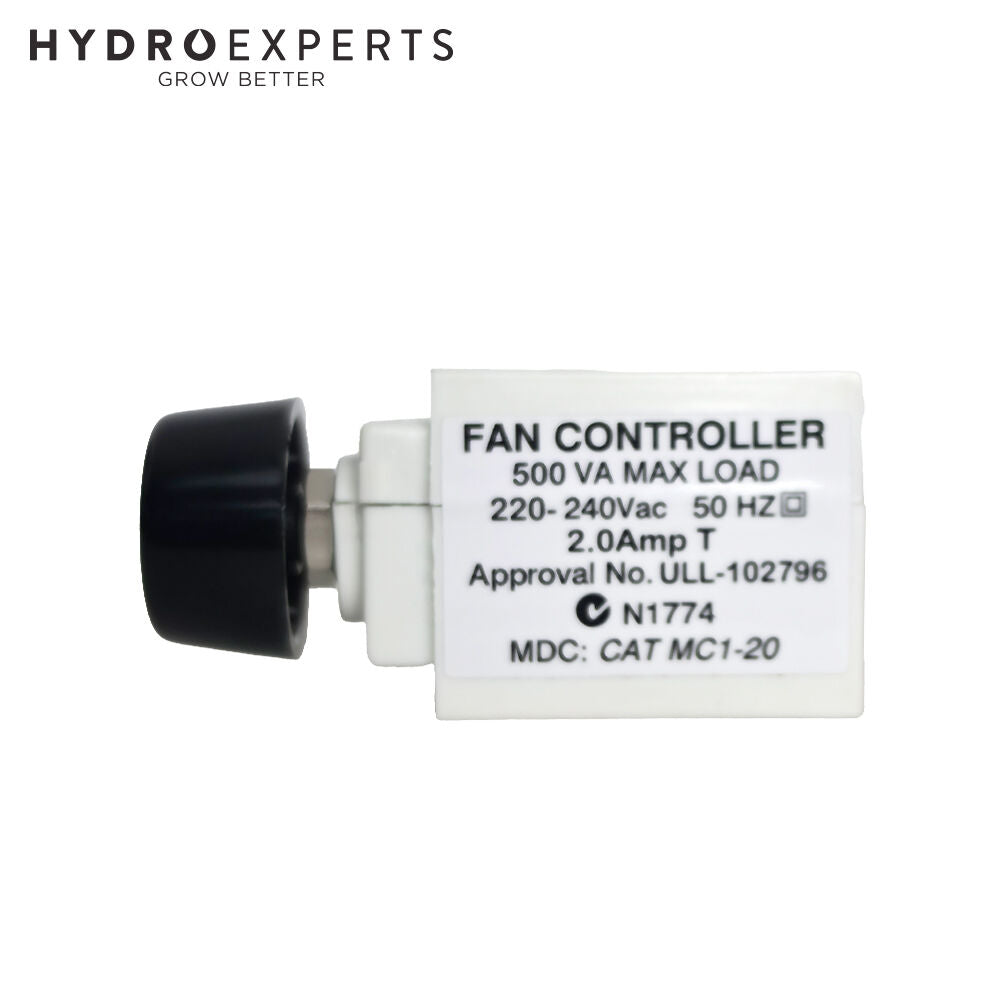

| VA2.0POT** | 2.0 | No |
- When used to control a number of identical fans, the sum of the full load amps of all the connected fans must not exceed 85% of the maximum rating of the controller.
- The fans must be wired in parallel.
What's in the box
What's in the box
- [1] x Fantech Speed Controller Switch - 2A / 2.8A / 5A / 8A
