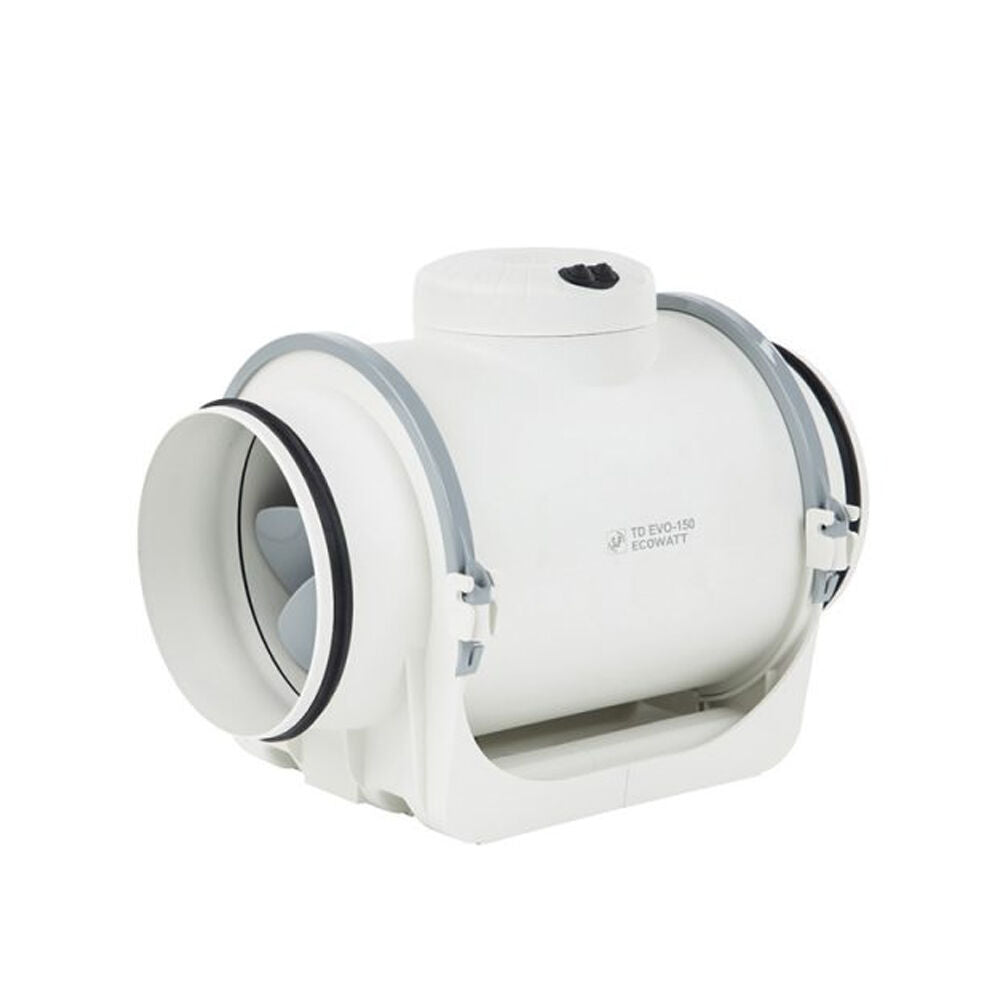

Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan w/ Run-On Timer - 100MM (4" Inch)

The Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan - 100MM is engineered for superior ventilation performance in both domestic and commercial environments. Designed with energy efficiency and low-noise operation in mind, this fan is the ideal solution for bathrooms, toilets, ensuites, laundries and kitchens where reliable air extraction is essential.

Equipped with dual control functionality, the TD Evo Var can be speed controlled via an on-board potentiometer or remotely using a 0-10V or 4-20mA analogue signal, ensuring flexibility for different applications. An integrated adjustable run-on timer (1 - 30 minutes) allows effective removal of steam and odours even after the room is vacated, making it perfect for residential apartments, hotels, and commercial buildings.

The fan features an optimised impeller, guide vanes, and outlet diffuser for quieter operation. Its lightweight design allows easy installation in any mounting position, while the main fan body can be removed without disturbing ductwork. With its durable construction, IP44 protection rating, and highly efficient single-phase AC motor, this fan is built to last and perform reliably in the Australian climate.

• Dual Speed Control: Adjust via on-board potentiometer or external 0-10V / 4-20mA signal.
• Integrated Run-On Timer: Adjustable from 1 to 30 minutes for continued ventilation after use.
• Low Noise Operation: Optimised impeller and diffuser ensure quiet performance.
• Flexible Installation: Fan can be mounted in any position with a rotatable junction box.
• Easy Maintenance: Main body removable without dismantling ducting.
• Durable & Efficient: Single-phase AC motor with IP44 protection for long service life.

• Model Number: TD-EVO-100VAR
• Airflow: 210 m³/h (58 L/s)
• Fan Speed: 41 rev/sec
• Average Noise @ 3m: 31 dB(A)
• Power: 16 W
• Current: 0.1 A
• Max Ambient Temperature: 60 °C
• Voltage: 220–240 V
• Weight: 1.7 kg

• [1] x Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan w/ Run-On Timer - 100MM (4" Inch)

• Specification Sheet - Click Here
