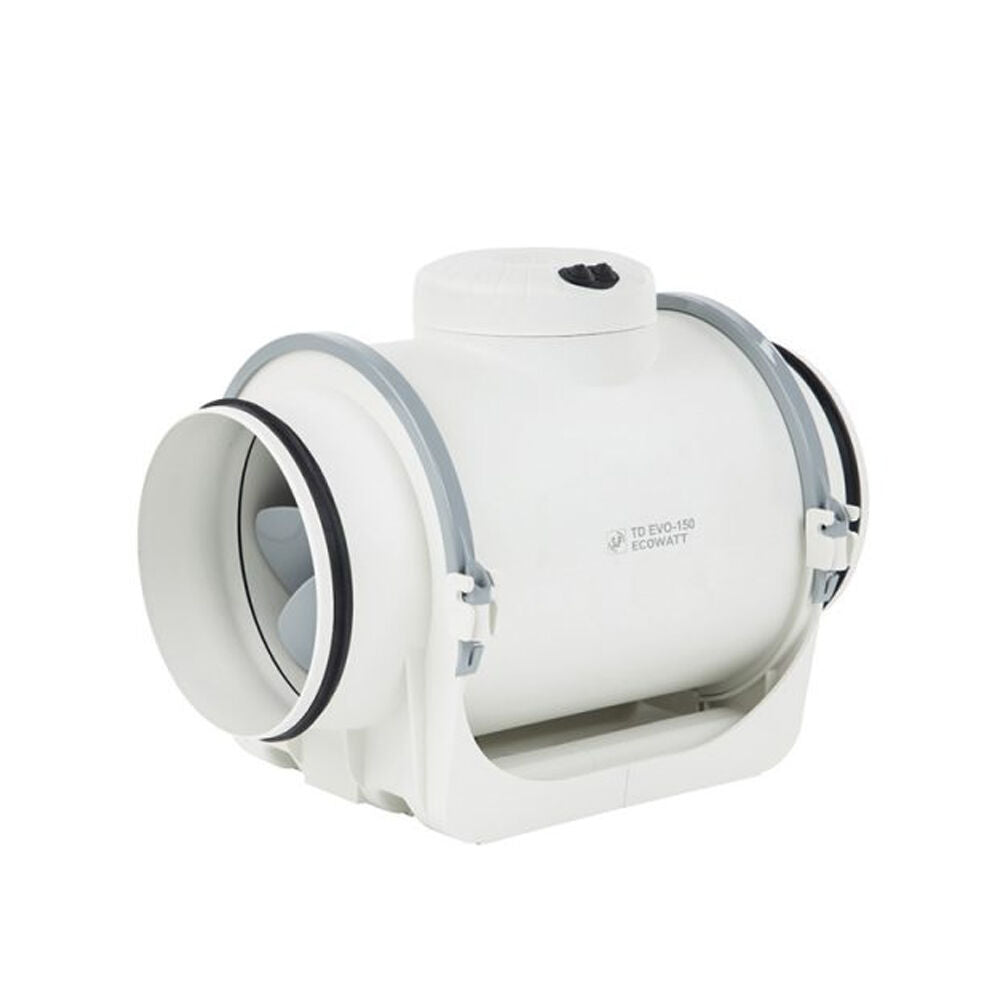

Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan w/ Run-On Timer - 125MM (5" Inch)

The Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan - 125MM is a high-performance ventilation solution designed for both residential and commercial applications. Built for energy efficiency and quiet operation, it is ideal for bathrooms, toilets, ensuites, laundries, and kitchens in homes, apartments, hotels, and commercial buildings.

This advanced in-line fan offers dual control flexibility, allowing speed regulation either via its on-board potentiometer or externally through a 0-10V or 4-20mA analogue signal. It also includes a convenient adjustable run-on timer (130 minutes), ensuring effective removal of steam, odours, and moisture even after the room is vacated.

With an optimised mixed-flow impeller and outlet diffuser, the TD Evo Var provides superior airflow with low noise levels. Its lightweight design and removable fan body simplify installation and maintenance, while the IP44 protection rating and highly efficient single-phase AC motor guarantee long-lasting performance in demanding Australian conditions.

• Dual Speed Control: On-board potentiometer or external 0-10V / 4-20mA analogue input.
• Run-On Timer: Adjustable from 1 to 30 minutes to continue ventilation after room use.
• Quiet Performance: Optimised impeller and diffuser design reduces noise output.
• Easy to Install & Maintain: Fan body can be removed without dismantling ductwork.
• Flexible Mounting: Can be installed in any position with rotatable junction box.
• Durable & Efficient: Robust single-phase AC motor with IP44 protection rating.

• Model Number: TD-EVO-125VAR
• Airflow: 310 m³/h (86 L/s)
• Fan Speed: 39 rev/sec
• Average Noise @ 3m: 36 dB(A)
• Power: 29 W
• Current: 0.1 A
• Max Ambient Temperature: 60 °C
• Voltage: 220–240 V
• Weight: 1.8 kg

• [1] x Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan w/ Run-On Timer - 125MM (5" Inch)

• Specification Sheet - Click Here
