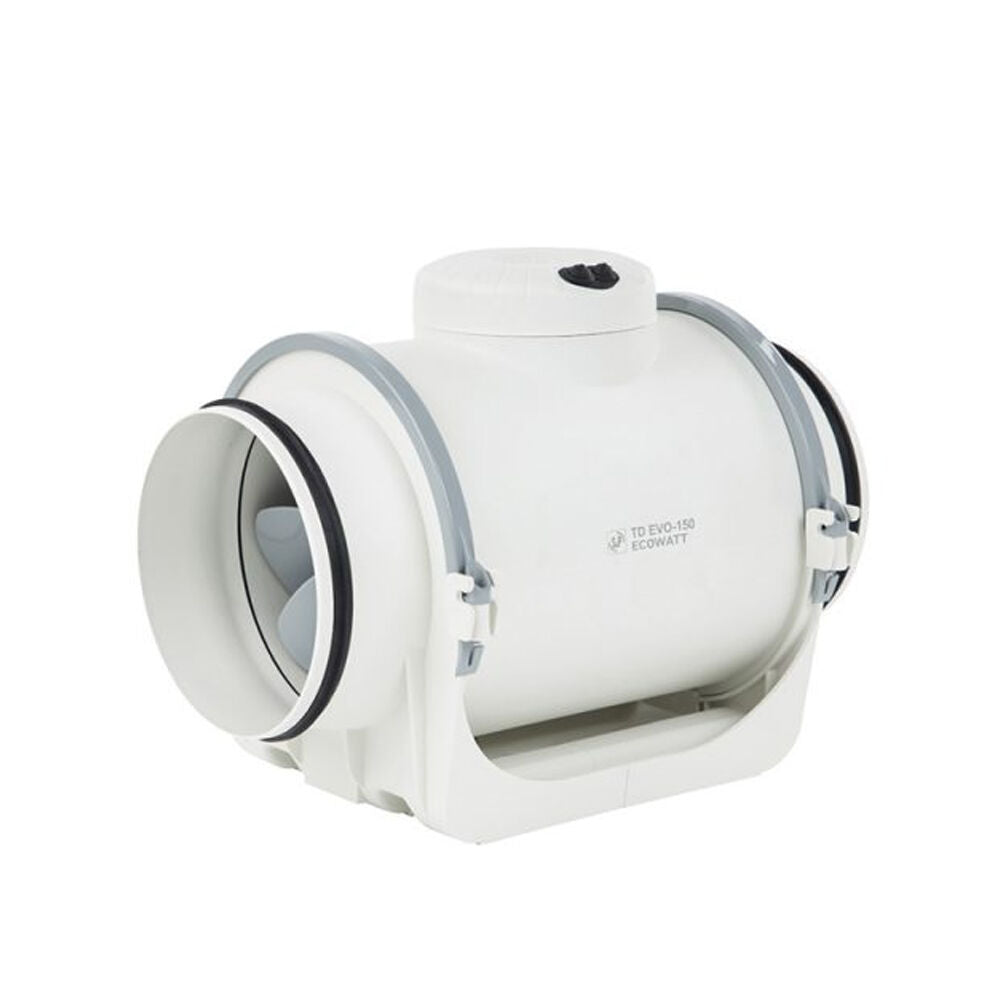

Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan w/ Run-On Timer -150MM (6" Inch)

The Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan - 150MM delivers outstanding airflow performance with minimal energy consumption, making it ideal for domestic and commercial ventilation systems. Suitable for bathrooms, laundries, kitchens, toilets, and ensuites, this versatile in-line fan is designed for Australian homes, apartments, hotels, and commercial buildings that require efficient and quiet ventilation.

Equipped with dual control functionality, the fan can be speed controlled via its on-board potentiometer or externally through a 0-10V or 4-20mA analogue signal. The integrated adjustable run-on timer (1 - 30 minutes) ensures effective extraction of steam, odours, and moisture even after the room has been vacated, improving indoor comfort and air quality.

The optimised mixed-flow impeller, guide vanes, and diffuser deliver high airflow with low noise levels. Its smart design allows the main fan body to be removed without disturbing connected ductwork, making installation and servicing straightforward. With a highly efficient single-phase AC motor, IP44 rating, and robust construction, the TD Evo Var is a durable and reliable choice for long-term ventilation needs in Australia.

• Dual Speed Control: On-board potentiometer or external 0-10V / 4-20mA signal input.
• Adjustable Run-On Timer: 1 - 30 minutes of extended ventilation after room use.
• Low Noise Design: Advanced impeller and diffuser reduce noise output.
• Service-Friendly: Fan body easily removable without ductwork disassembly.
• Flexible Installation: Can be mounted in any position with rotatable junction box.
• Reliable Performance: Efficient single-phase AC motor with IP44 protection.

• Model Number: TD-EVO-150VAR
• Airflow: 560 m³/h (156 L/s)
• Fan Speed: 44 rev/sec
• Average Noise @ 3m: 44 dB(A)
• Power: 45 W
• Current: 0.2 A
• Max Ambient Temperature: 60 °C
• Voltage: 220–240 V
• Weight: 3.0 kg

• [1] x Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan w/ Run-On Timer -150MM (6" Inch)

• Specification Sheet - Click Here
