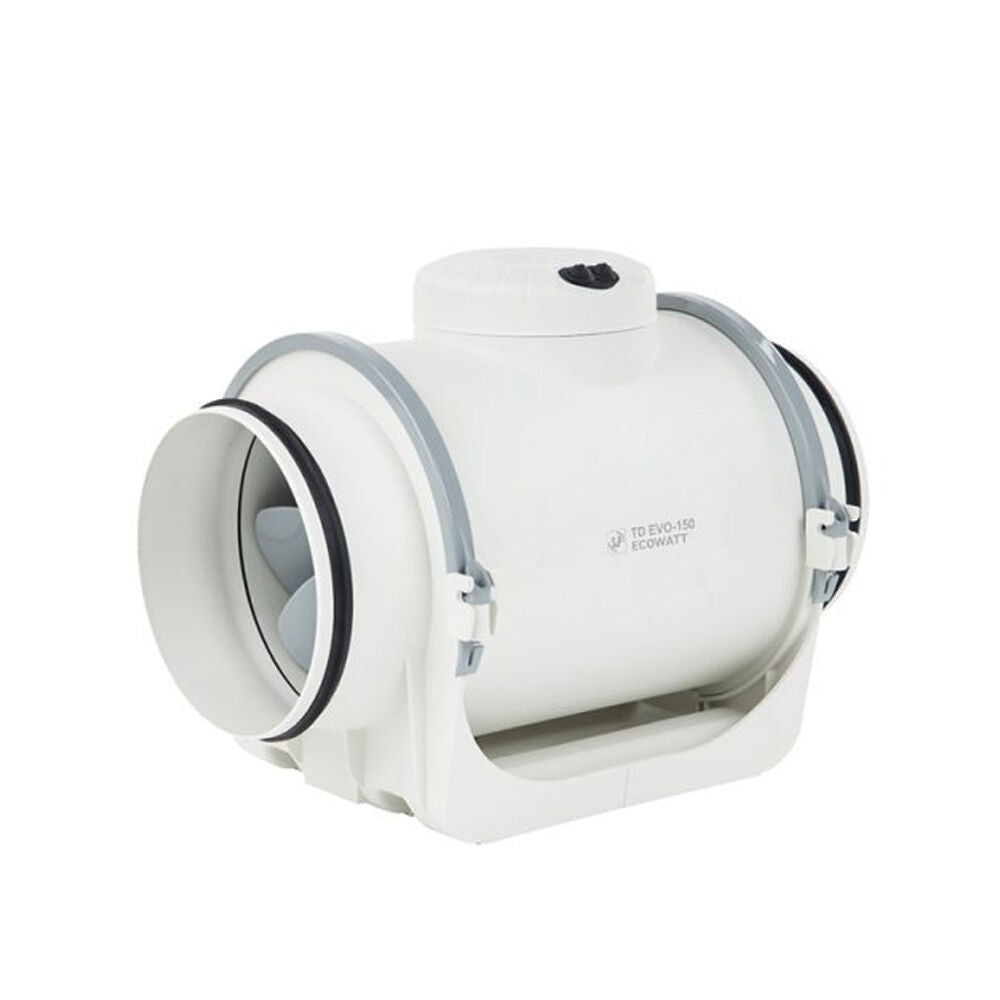

Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan w/ Run-On Timer - 200MM (8" Inch)

The Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan - 200MM is designed for powerful ventilation with exceptional energy efficiency, making it suitable for both domestic and commercial installations. With its high airflow capacity, this fan is ideal for kitchens, laundries, bathrooms, ensuites, and larger residential or commercial spaces where reliable extraction of air, steam, and odours is required.

Offering dual speed control, the TD Evo Var can be regulated via its on-board potentiometer or through an external 0-10V or 4-20mA analogue signal for greater flexibility. The integrated adjustable run-on timer (130 minutes) ensures that humidity and odours continue to be expelled even after the room is vacated, helping maintain a healthier indoor environment.

Built with an optimised impeller, guide vanes, and outlet diffuser, the fan delivers low-noise performance despite its high power. Installation is simple with a removable fan body and rotatable junction box, while the single-phase AC motor and IP44 protection rating provide durability and long-lasting performance suited to Australian conditions.

• Dual Speed Control: On-board potentiometer or external 0-10V / 4-20mA analogue input.
• Integrated Run-On Timer: Adjustable between 1 and 30 minutes for continued ventilation.
• High Airflow Capacity: Moves up to 900 M³/H, suitable for larger residential and commercial applications.
• Low Noise Operation: Advanced impeller and diffuser design for quieter performance.
• Flexible Installation: Mount in any position with rotatable junction box.
• Easy Servicing: Main body removable without dismantling connected ductwork.
• Reliable & Durable: Efficient single-phase AC motor with IP44 protection rating.

• Model Number: TD-EVO-200VAR
• Airflow: 900 m³/h (250 L/s)
• Fan Speed: 45 rev/sec
• Average Noise @ 3m: 47 dB(A)
• Power: 107 W
• Current: 0.5 A
• Max Ambient Temperature: 60 °C
• Voltage: 220–240 V
• Weight: 4.1 kg

[1] x Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan w/ Run-On Timer - 200MM (8" Inch)

• Specification Sheet - Click Here
