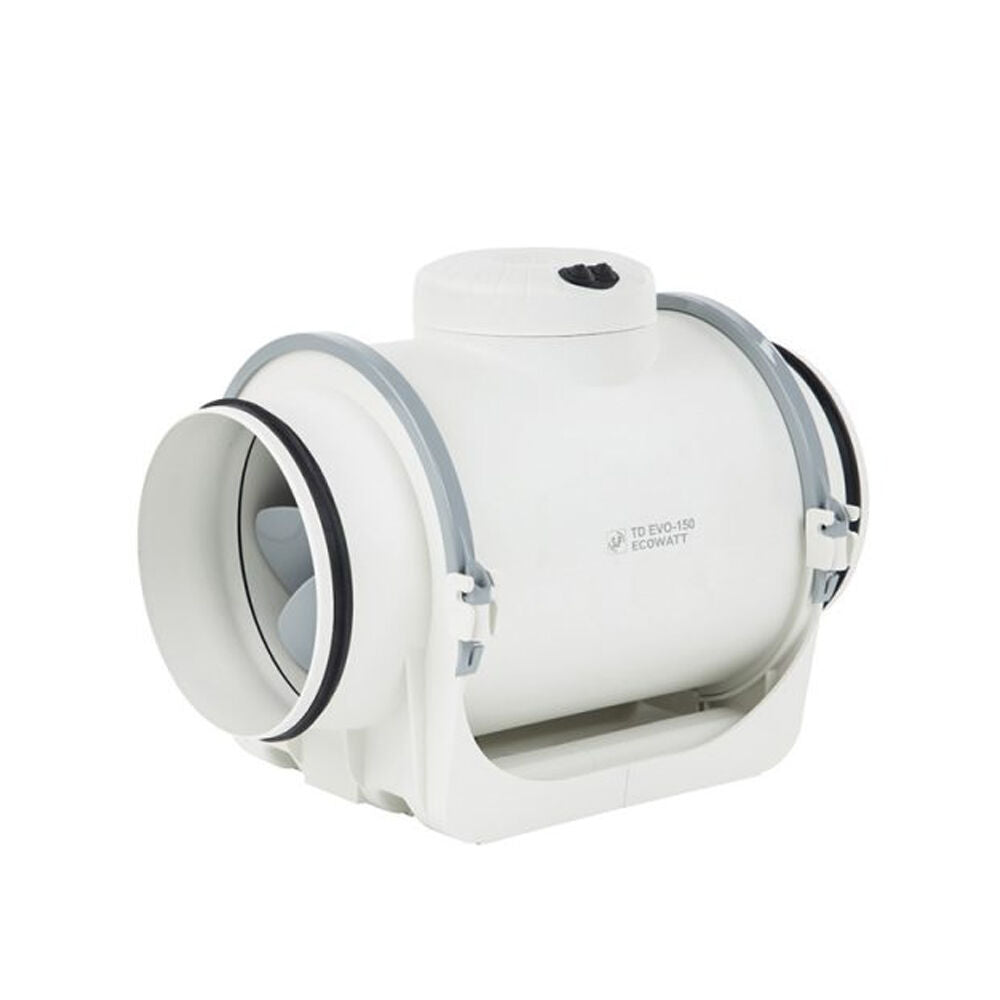

Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan w/ Run-On Timer - 250MM (10" Inch)

The Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan - 250MM delivers high-capacity ventilation with outstanding energy efficiency, making it an excellent choice for large domestic and commercial spaces. Designed to remove steam, moisture, and odours effectively, this powerful fan is ideal for kitchens, laundries, apartments, hotels, and commercial facilities that require robust and reliable air movement.

With its dual control functionality, speed can be adjusted either via the on-board potentiometer or remotely using a 0-10V or 4-20mA analogue signal, offering flexible operation. The integrated adjustable run-on timer (130 minutes) ensures continued ventilation after room use, improving indoor air quality and reducing moisture build-up.

Engineered with an optimised mixed-flow impeller, guide vanes, and outlet diffuser, the TD Evo Var combines quiet operation with high performance. Installation and maintenance are simple thanks to the removable fan body and rotatable junction box. With a durable single-phase AC motor and IP44 protection, this fan is built to perform reliably in demanding Australian conditions.

• Dual Control: Speed adjustable via on-board potentiometer or external 0-10V / 4-20mA analogue input.
• Run-On Timer: Adjustable from 1 to 30 minutes for extended ventilation after room use.
• Powerful Airflow: Moves up to 1400 M³/H, suitable for large-scale residential and commercial spaces.
• Quiet Performance: Optimised impeller and diffuser ensure reduced noise levels.
• Flexible Installation: Can be mounted in any orientation with rotatable junction box.
• Easy Maintenance: Main fan body removable without dismantling ductwork.
• Durable & Efficient: Reliable single-phase AC motor with IP44 protection rating.

• Model Number: TD-EVO-250VAR
• Airflow: 1400 m³/h (389 L/s)
• Fan Speed: 45 rev/sec
• Average Noise @ 3m: 52 dB(A)
• Power: 181 W
• Current: 0.8 A
• Max Ambient Temperature: 60 °C
• Voltage: 220–240 V
• Weight: 6.2 kg

• [1] x Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan w/ Run-On Timer - 250MM (10" Inch)

• Specification Sheet - Click Here
