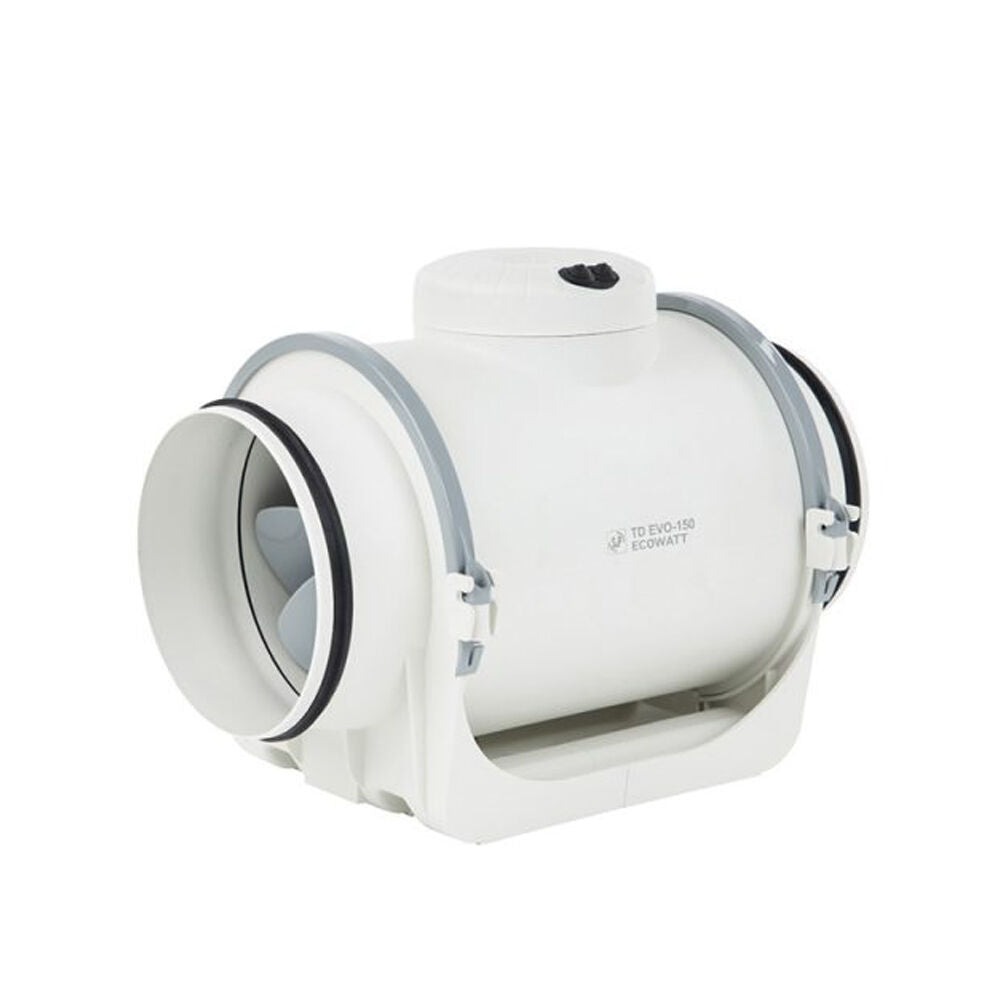

Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan w/ Run-On Timer - 315MM (12" Inch)

The Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan - 315MM is the largest model in the TD Evo Var range, delivering exceptionally high airflow performance for large-scale domestic, commercial, and industrial applications. Perfect for commercial kitchens, laundries, apartments, hotels, warehouses, and other high-demand environments, this powerful fan ensures reliable air extraction while maintaining energy efficiency.

With dual control options, fan speed can be adjusted via the on-board potentiometer or externally using a 0-10V or 4-20mA analogue signal, providing maximum control flexibility. The integrated run-on timer (adjustable from 1 to 30 minutes) ensures effective ventilation continues after room use, removing lingering moisture, odours, and steam.

Engineered with optimised mixed-flow impeller technology, guide vanes, and an outlet diffuser, this fan balances high airflow with quiet operation. Its removable fan body makes servicing simple without dismantling ducting, while the IP44 protection rating and highly efficient single-phase AC motor guarantee long-lasting performance even in demanding Australian conditions.

• Dual Control Operation: Adjustable via on-board potentiometer or external 0-10V / 4-20mA signal.
• Run-On Timer: 1 - 30 minute adjustable timer for extended ventilation after use.
• Maximum Airflow Capacity: Moves up to 1840 M³/H, ideal for large-scale ventilation systems.
• Quiet Performance: Optimised impeller and diffuser reduce noise output despite high airflow.
• Flexible Installation: Can be mounted in any orientation with rotatable junction box.
• Easy Maintenance: Fan body removable without disturbing ductwork.
• Reliable & Durable: High-efficiency single-phase AC motor with IP44 protection rating.

• Model Number: TD-EVO-315VAR
• Airflow: 1840 m³/h (511 L/s)
• Fan Speed: 44 rev/sec
• Average Noise @ 3m: 56 dB(A)
• Power: 273 W
• Current: 1.1 A
• Max Ambient Temperature: 60 °C
• Voltage: 220 - 240 V
• Weight: 8.4 kg

• [1] x Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan w/ Run-On Timer - 315MM (12" Inch)

• Specification Sheet - Click Here
