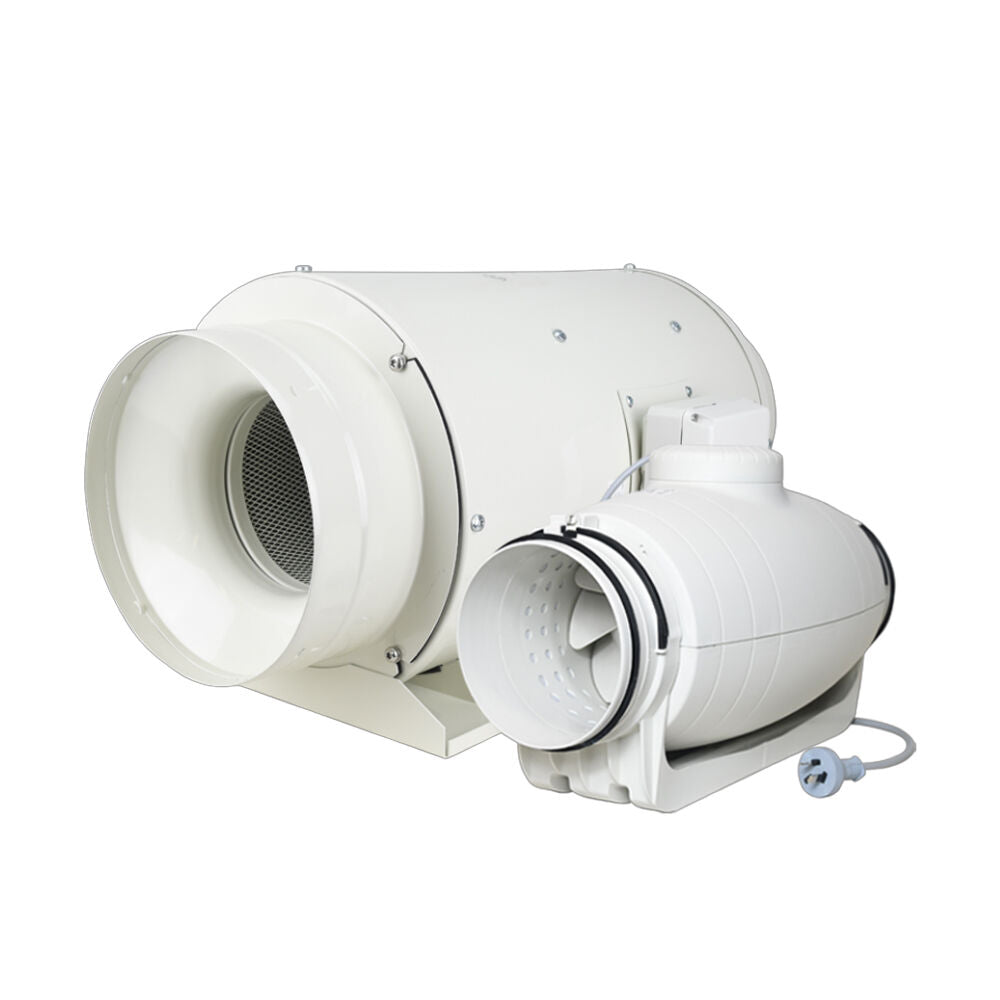

Fantech TD Silent In-Line Duct Mounted AC Exhaust Fan - 125MM (5" Inch)

The Fantech TD Silent 125MM In-Line Duct Mounted AC Exhaust Fan delivers powerful ventilation performance while remaining exceptionally quiet. Specifically engineered for apartments, hotels, offices, and noise-sensitive environments, this compact fan incorporates advanced mixed-flow technology that ensures efficient air extraction without disturbing occupants.

Featuring vibration-absorbing elements and an aerodynamically designed housing, the TD Silent series is one of the quietest in-line fans available in Australia. The unit includes a 2-speed motor (factory set to high), plug and lead for quick installation, and a 3600 rotating junction box for flexible power connection. The integral mounting foot makes installation easy, while the fan body can be removed without disturbing ductwork for simple servicing.

Ideal for domestic and light commercial ventilation applications, this fan combines low energy consumption, long-lasting reliability, and ultra-quiet operation, making it a preferred choice for professionals and DIY installers across Australia.

• High Performance Mixed-Flow Impeller: Provides strong airflow while keeping noise levels low.
• Low Noise Operation: Designed with vibration-absorbing components for quiet running.

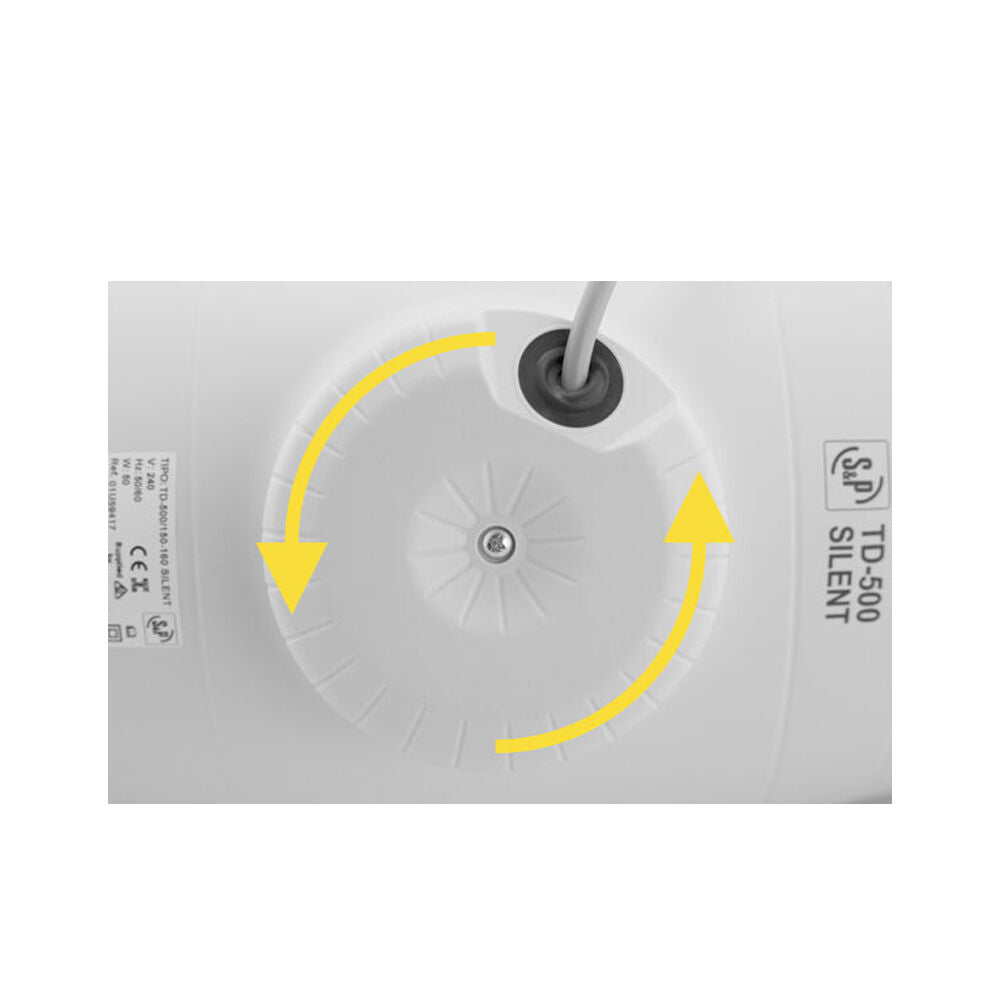

• 360° Rotating Junction Box: Easy connection of power cable (100 - 200mm models only).
• Integral Mounting Foot: Allows for quick and stable installation.
• Plug and Lead Included: Makes installation simple and fast.
• 2-Speed Motor: Convenient speed control, factory set to high.
• Service-Friendly Design: Fan body can be removed without disturbing ductwork.

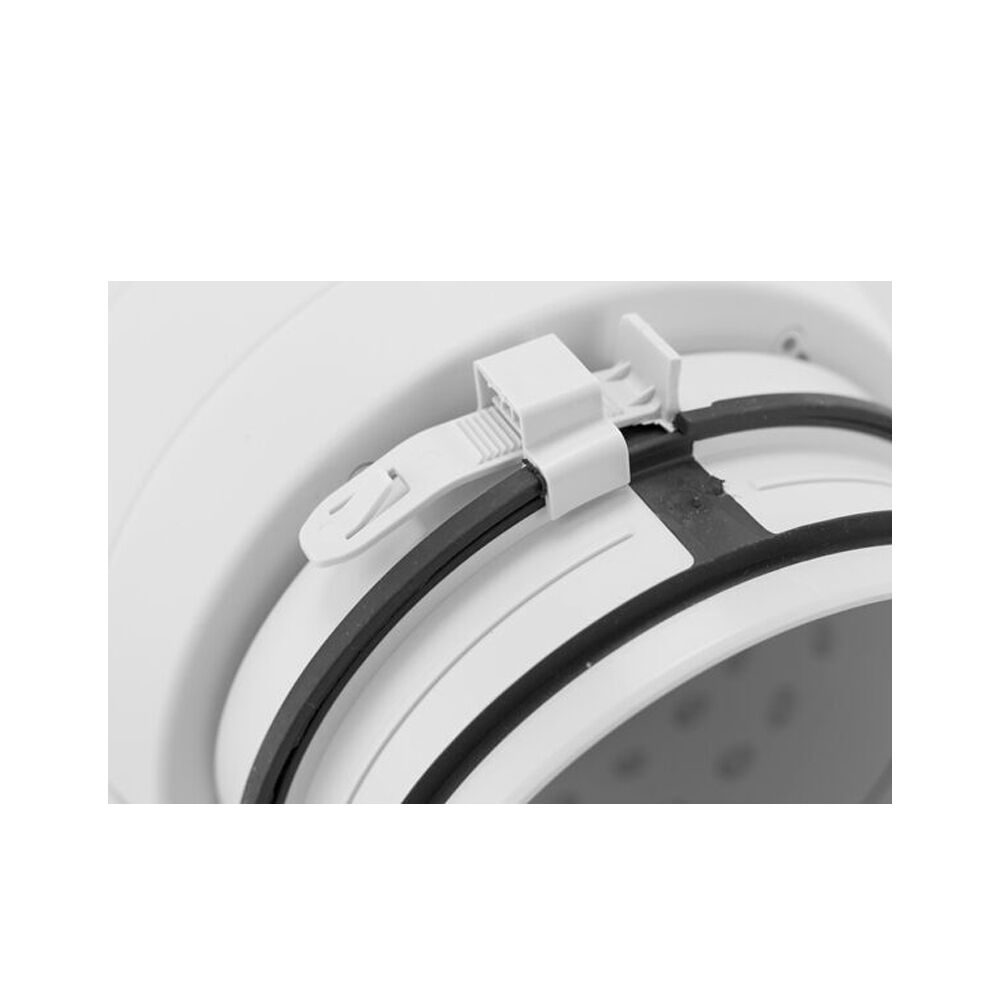

• Rubber Gaskets: Help reduce air leakage and absorb vibration.

• Model Number: TD-EVO-125VAR
• Airflow: 360 m³/h (100 L/s)
• Fan Speed: 2250 RPM
• Average Noise @ 3m: 33 dB(A)
• Power: 30 W
• Max Ambient Temp: 60 °C
• Voltage: 220 - 240 V

• [1] x Fantech TD Silent In-Line Duct Mounted AC Exhaust Fan - 125MM (5" Inch)

• Specification Sheet - Click Here
