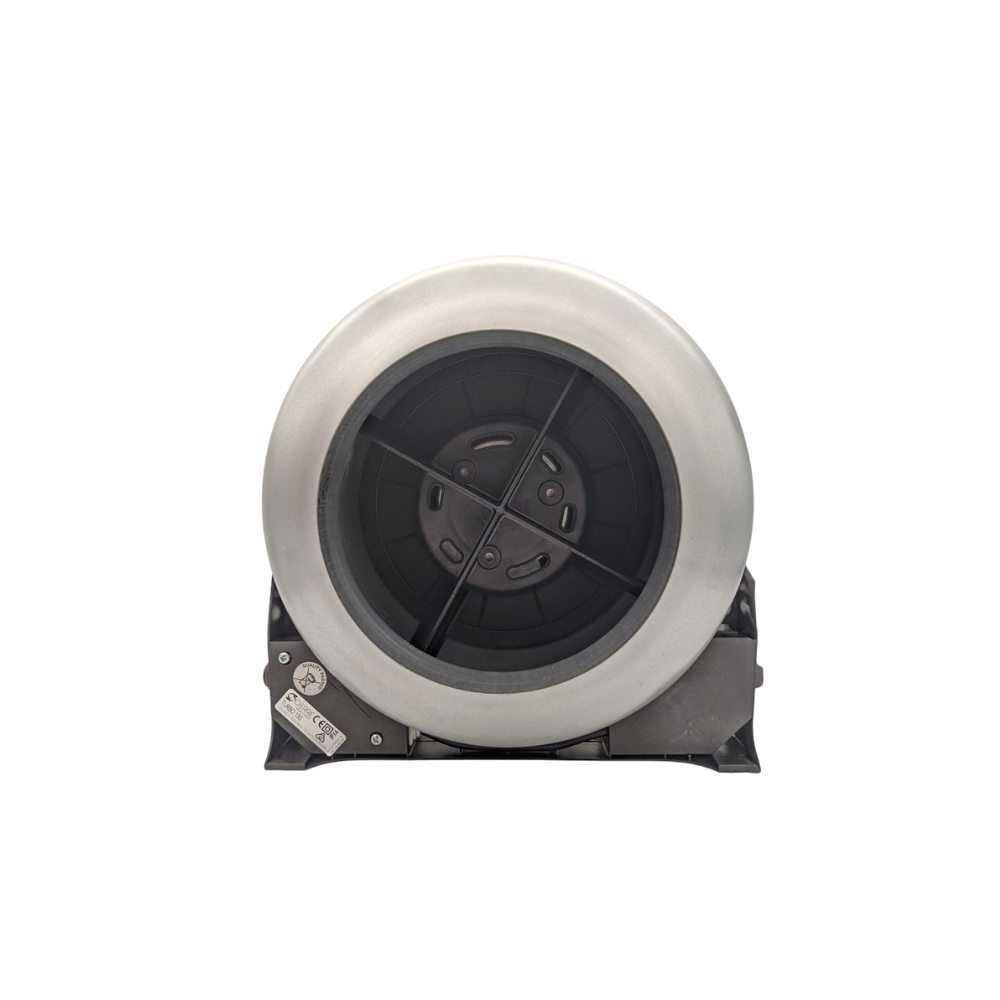

Oerre Turbo Centrifugal Inline AC Fan - 150MM (6" Inch) | w/ Metal Casing
Air Flow 500 M³/H | Power 60W | Noise 52 dB(A) | IPX4
Product Overview
| Model Number | Turbo 150 |
| Airflow (M³/H) | 500 |
| Duct Flange Size | 150MM (6" Inch) |
| Motor Type | AC |
| Exhaust Fan Power (W) | 60 |
| Noise Level | 52 dBA |
| IP Rating | IPX4 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Backdraft Damper | No |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | Optional |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Fanco - 2 Years Replacement Warranty |
Description
Description
The Oerre Turbo Centrifugal Inline AC Fan 150MM with metal casing is a high-pressure inline exhaust fan designed for serious duct runs and medium to large rooms. Pushing up to 500 M3/H through 150MM (6" Inch) duct, it is ideal for bathrooms, kitchens, laundries and commercial areas where a standard axial fan cannot hold performance against resistance.
A zinc-plated steel casing, protected ball bearing motor and double-insulated design make this unit a tough option for Australian job sites. The IPX4 protection rating and IP54 electrical box suit moist areas, while the integrated mounting bracket keeps installs straightforward in roof spaces and ceiling voids.
Tradies and builders will appreciate the 285 Pa pressure capacity, 60W motor and 52 dB(A) noise level, giving a reliable balance of grunt and comfort. Pair this 150MM centrifugal inline fan with quality duct, grilles and a speed controller to build a robust inline exhaust system that is easy to service and maintain. Add the Oerre Turbo 150 inline fan to your cart today.
Features
Features
- High pressure airflow - 500 M³/H centrifugal inline fan suited to long or restrictive duct runs.
- Durable metal casing - zinc plated steel housing for commercial grade reliability on site.
- Standard 150MM connections - 150MM (6" Inch) duct spigots to suit common Australian duct systems.
- Efficient ball bearing motor - 60W single phase motor at approximately 2530 RPM for strong airflow and long service life.
- Moisture resistant - IPX4 protected product with IP54 terminal box and double insulated construction.
- Easy installation - integrated mounting bracket and suspension holes for quick fixing in roof spaces and plant rooms.
- High temperature capability - rated for extracted air up to 55°C for tough ventilation applications.
- System friendly - works with speed controllers, backdraft shutters and standard inline ventilation accessories.
Specifications
Specifications
- Brand: Oerre
- Model: Turbo 150 (0037600)
- Type: Centrifugal inline AC exhaust fan
- Air Flow: 500 M³/H (free air)
- Max Static Pressure: 285 Pa (29 mm H₂O)
- Power Consumption: 60W
- Voltage: 220-240V AC
- Frequency: 50 Hz
- Motor: Single phase, 2 pole, ball bearing centrifugal motor
- Motor Speed: 2530 RPM
- Nominal Current: 0.38 A
- Noise Level: 52 dB(A) at 3 m
- Ingress Protection: IPX4 product, IP54 terminal box
- Insulation: Double insulated, no earth required
- Duct / Flange Size: 150MM (6" Inch)
- Maximum Air Temperature: 55°C extracted air
- Casing Material: Zinc plated steel with high resistance motor support
- Mounting: In line duct mounting with integrated bracket
- Overall Length (L): 287 mm (28.7 cm)
- Overall Width (W): 287 mm (28.7 cm)
- Body Height (H): 242 mm (24.2 cm)
- Weight: 2.7 kg
- Country of Manufacture: Italy
- Warranty: 1 year replacement (manufacturer conditions apply)
What's in the box
What's in the box
- [1] x Oerre Turbo Centrifugal Inline AC Fan - 150MM (6" Inch) | w/ Metal Casing
