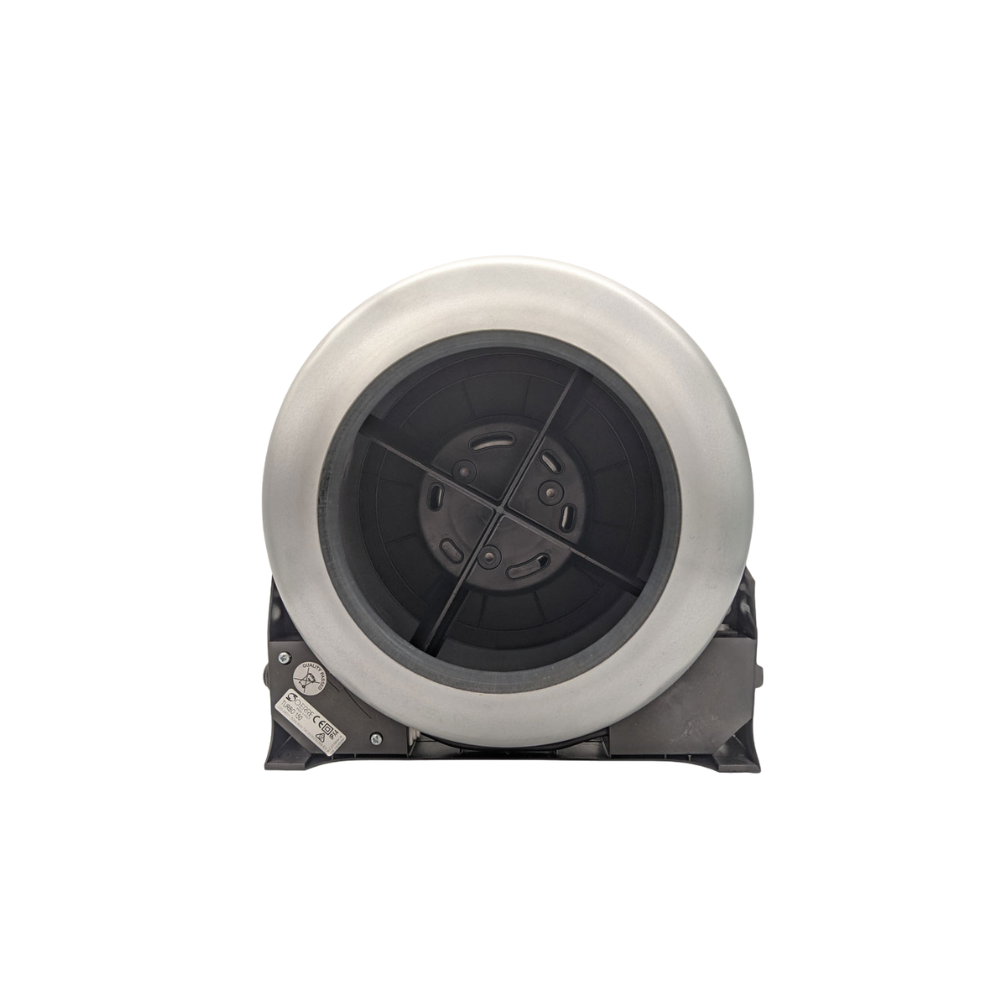

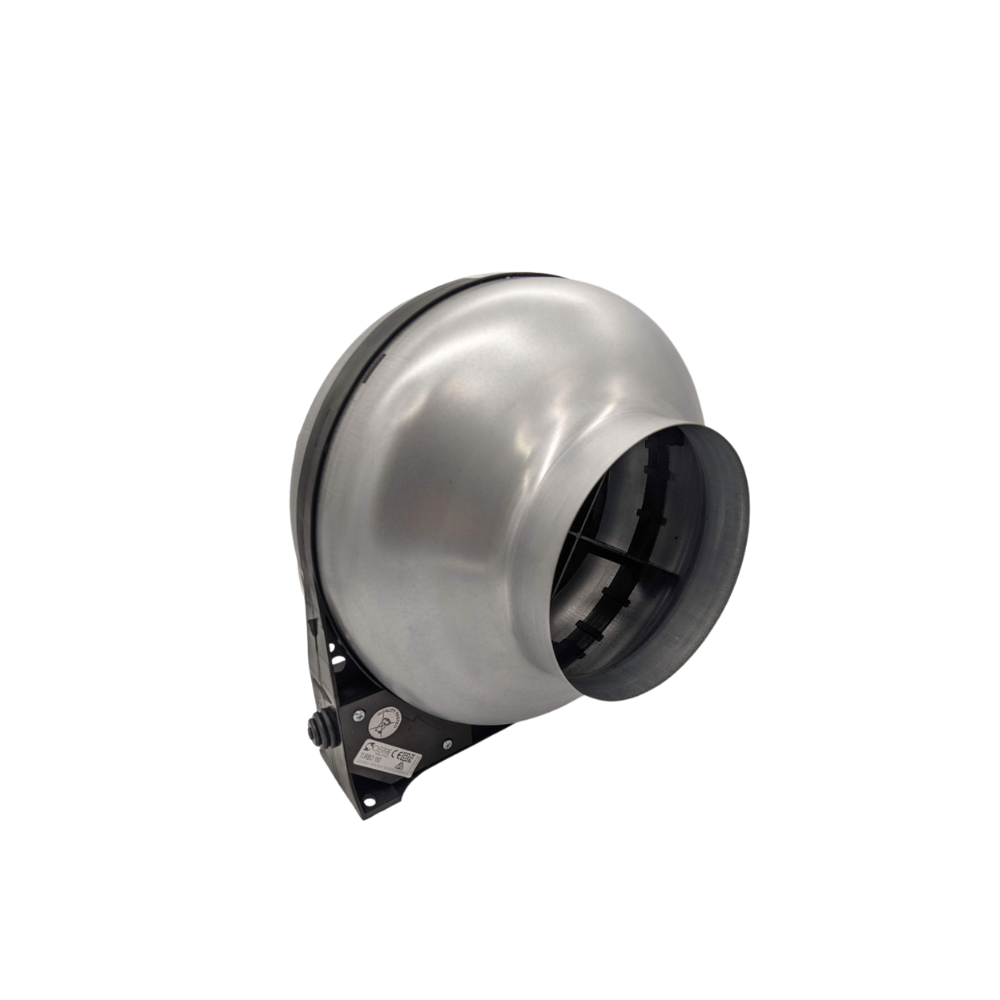

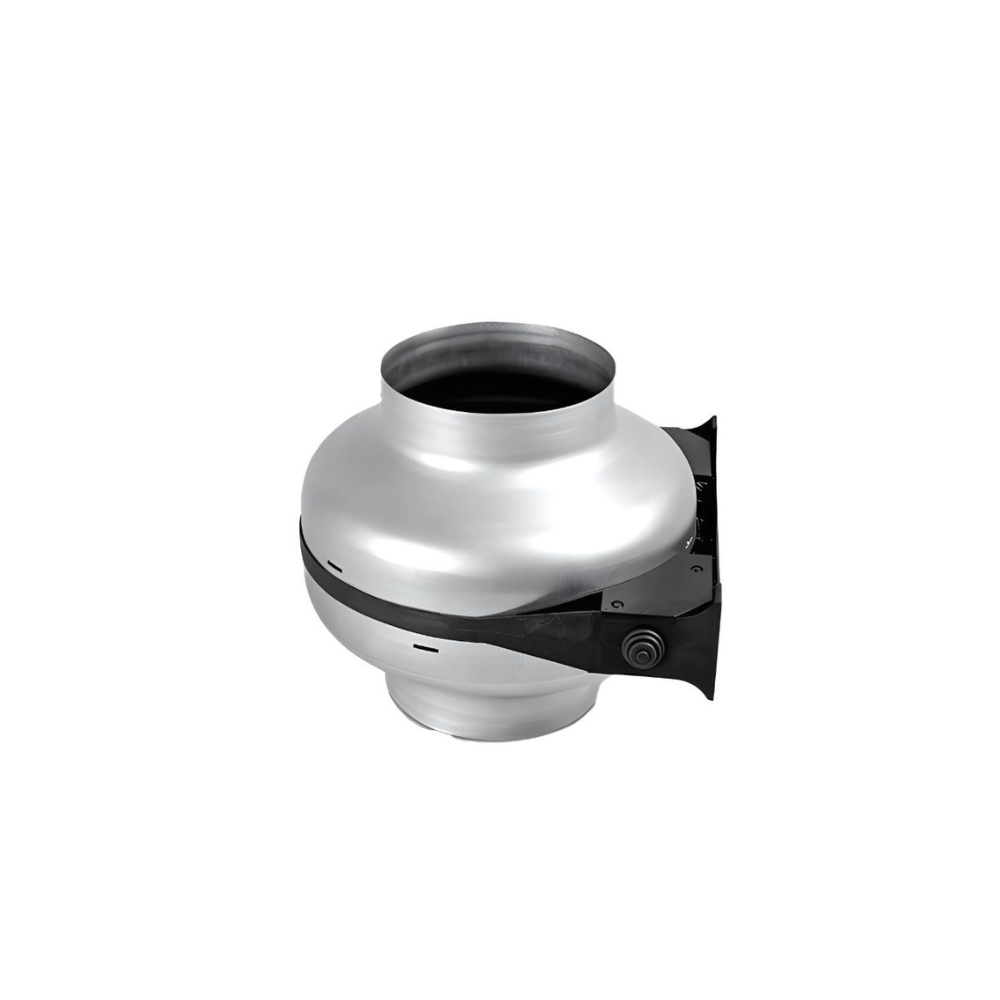

Oerre Turbo Centrifugal Inline AC Fan - 200MM (8" Inch) | w/ Metal Casing
Air Flow 1050 M³/H | Power 180W | Noise 58 dB(A) | IPX4
Product Overview
| Model Number | Turbo 200 |
| Airflow (M³/H) | 1050 |
| Duct Flange Size | 200MM (8" Inch) |
| Motor Type | AC |
| Exhaust Fan Power (W) | 180 |
| Noise Level | 58 dBA |
| IP Rating | IPX4 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Backdraft Damper | No |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | Optional |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Fanco - 2 Years Replacement Warranty |
Description
Description
The Oerre Turbo Centrifugal Inline AC Fan 200MM with metal casing is a serious high pressure inline fan for long duct runs and large rooms. Moving up to 1050 M3/H through 200MM (8" Inch) duct, this Italian made centrifugal inline fan is ideal for bathrooms, commercial kitchens, gyms, shops, warehouses and industrial spaces where a standard axial fan will not cope with resistance.
A zinc plated steel frame, ball bearing motor and double insulated design give long service life in demanding Australian conditions. The IPX4 protection and IP54 electrical box suit moist environments, while the integrated mounting bracket makes installation straightforward in roof spaces, ceiling voids and plant rooms.
Tradies and builders will value the 180W motor, 2550 RPM speed and 58 dB(A) noise level, delivering strong airflow without being over the top on noise. Pair this 200MM centrifugal inline fan with quality ducting, grilles, a backdraft shutter and speed controller to build a robust inline exhaust or supply air system. Add the Oerre Turbo 200 to your cart today.
Features
Features
- High pressure airflow - 1050 M³/H centrifugal inline fan suited to long or restrictive duct runs.
- Durable metal casing - zinc plated steel housing for commercial and industrial duty.
- Standard 200MM connections - 200MM (8" Inch) duct spigots to suit common Australian duct systems.
- Powerful motor - 180W ball bearing motor running at approximately 2550 RPM for strong reliable performance.
- Moisture resistant - fan IPX4 protected with IP54 electrical box and double insulated design.
- Easy installation - integrated mounting bracket and fixing holes for quick mounting in roof spaces and plant rooms.
- Versatile applications - suitable for bathrooms, commercial kitchens, gyms, shops, warehouses and general ventilation.
- System friendly - compatible with speed controllers, backdraft shutters, flexible duct and other inline ventilation accessories.
Specifications
Specifications
- Brand: Oerre
- Model: Turbo 200 (UF38100)
- Type: Centrifugal inline AC exhaust fan
- Air Flow: 1050 M³/H (free air)
- Power Consumption: 180W
- Voltage: 220-240V AC
- Frequency: 50 Hz
- Motor: Single-phase centrifugal motor with ball bearings
- Motor Speed: 2550 RPM
- Current Draw: 0.47 A
- Noise Level: 58 dB(A)
- IP Rating: Fan IPX4, electrical box IP54
- Insulation: Double insulated, no earth required
- Duct / Flange Size: 200MM (8" Inch)
- Max Temperature of Transferred Air: 40°C
- Casing Material: Zinc plated steel frame with high resistance motor support
- Mounting: In line duct mounting with integrated bracket and fixing holes
- Application: Domestic, commercial and industrial ducted ventilation systems
- Country of Manufacture: Italy
- Warranty: 1 year replacement (manufacturer conditions apply)
What's in the box
What's in the box
- [1] x Oerre Turbo Centrifugal Inline AC Fan - 200MM (8" Inch) | w/ Metal Casing
