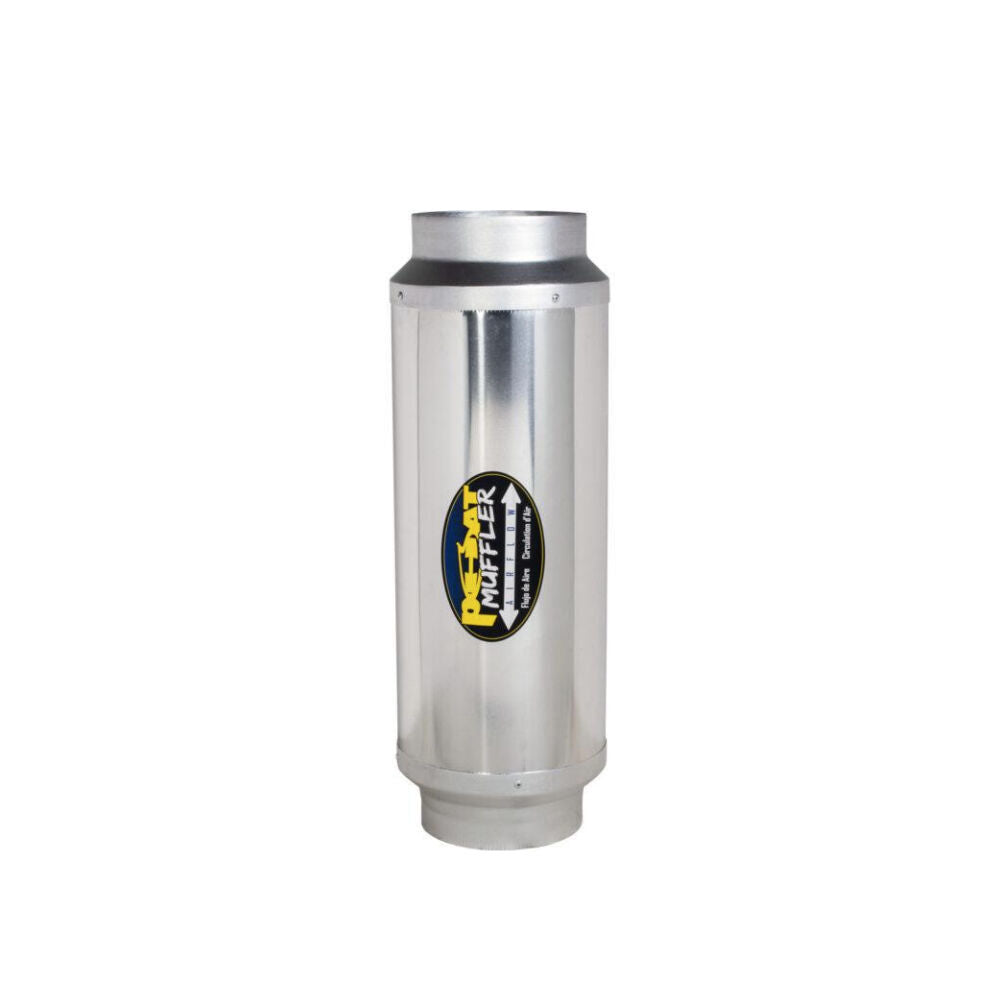

Phat Compact Inline Muffler / Silencer - 200MM x 760MM

The Phat Inline Silencer 200 x 760MM is a high-performance acoustic muffler designed to reduce noise generated by inline fans, blowers and fast-moving air within ducted ventilation systems. Featuring a 200MM (8 inch) connection, it is well suited to hydroponic grow rooms, grow tents, indoor gardens and larger extraction systems where effective ventilation noise management is required.

Featuring an 85% Noise Reduction Coefficient (NRC), the Phat Silencer uses specialised glass pack acoustic material to absorb and reduce fan and airflow noise. Unlike conventional foam-based materials that may deteriorate or disintegrate over time, the Phat glass pack provides a durable solution for ongoing sound attenuation.

The lightweight aluminium construction provides a strong yet manageable housing that is easy to install and resistant to rust. A specially designed 45-degree internal taper before the flanges further assists with noise reduction while supporting smooth airflow through the silencer.

Designed for maximum free-flow air movement, the Phat Inline Silencer helps manage ventilation noise without unnecessarily restricting airflow through a correctly sized extraction system. This makes it particularly useful with high-airflow 200MM inline fans and compatible carbon filtration systems.

The muffler features a non-directional design, allowing airflow to pass through it in either direction. When using a single silencer, installation on the intake side of the fan or blower is recommended for maximum sound attenuation. For additional sound reduction, one Phat Muffler can be installed on the fan intake and another on the outlet.

For standard installations, the 200MM Phat Muffler should be matched with 200MM ducting and a compatible 200MM inline fan. It can be attached using suitable self-tapping sheet metal screws or duct tape, while chain or rope wrapped around the housing can be used for suspended installations.

The unit weighs approximately 4.7kg. Keep the muffler dry during operation, and if it becomes wet, allow it to dry thoroughly before returning it to normal use.

• 200 x 760MM Size: Full-length inline silencer designed for compatible 200MM ventilation and extraction systems.
• 8 Inch Connection: Designed to match compatible 8 inch inline fans, ducting, carbon filters and ventilation accessories.
• 85% Noise Reduction Coefficient: Features an 85% NRC rating for effective attenuation of inline fan and duct airflow noise.
• Glass Pack Acoustic Material: Uses durable glass pack acoustic material designed to resist deterioration and disintegration associated with conventional foam products.
• 45-Degree Internal Taper: Special internal taper before the flanges assists with additional sound attenuation.
• Lightweight Aluminium Construction: Aluminium housing provides a lightweight, rust-resistant structure for easier installation.
• Maximum Free-Flow Air Movement: Designed to reduce ventilation noise while maintaining efficient airflow through the extraction system.
• Non-Directional Design: Air can pass through the muffler in either direction for greater installation flexibility.
• Intake or Outlet Installation: Suitable for installation on either the intake or outlet side of a compatible inline fan or blower.
• Intake Installation Recommended: When using a single muffler, installation on the fan or blower intake is recommended for maximum sound attenuation.
• Dual Muffler Setup: Install one muffler on the intake and another on the outlet for additional ventilation noise reduction.
• Multiple Mounting Options: Can be attached using suitable sheet metal screws or duct tape, or suspended using chain or rope.
• 4.7KG Weight: Manageable construction supports installation within appropriately supported ventilation systems.
• Keep Dry: Designed for dry ventilation applications and should be thoroughly dried if exposed to moisture.

• [1] x Phat Compact Inline Muffler / Silencer - 200MM x 760MM
