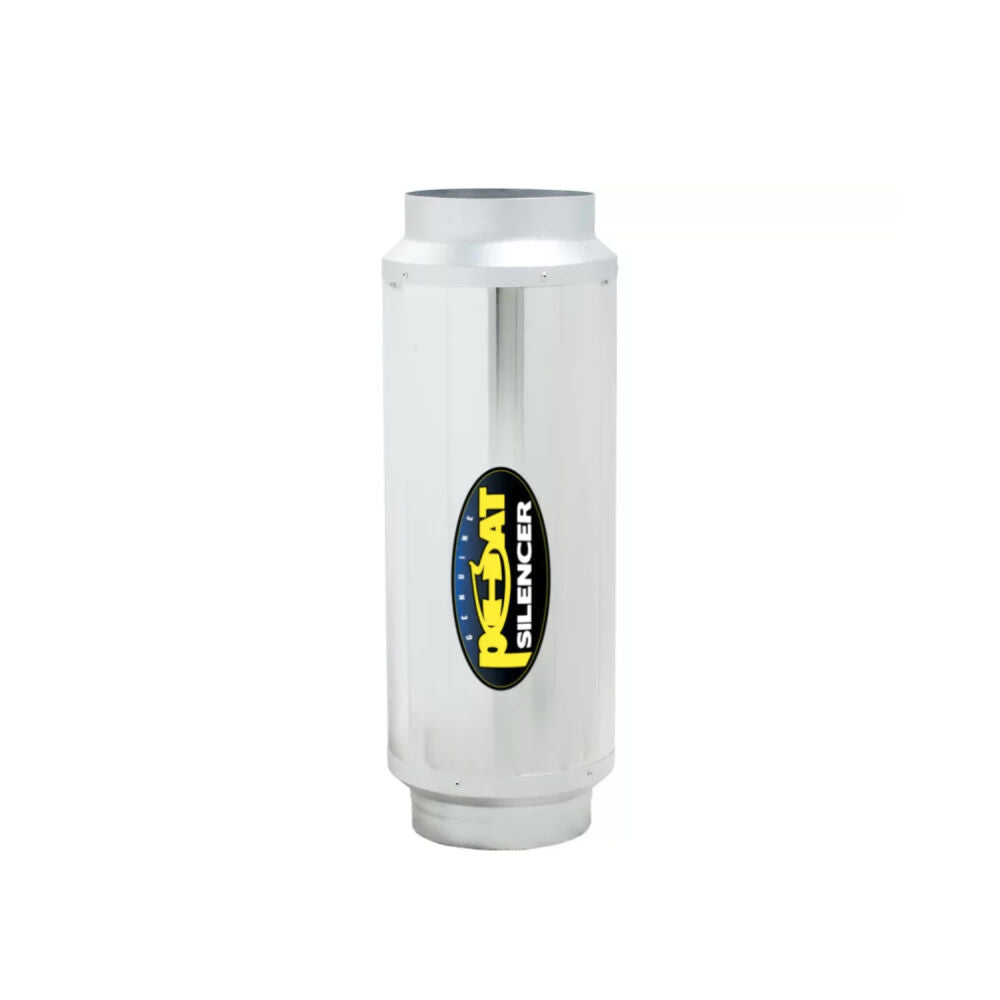

Phat Compact Inline Muffler / Silencer - 250MM x 890MM

The Phat Inline Silencer 250 x 890MM is a high-capacity acoustic muffler designed to reduce noise generated by inline fans, blowers and air travelling through ducted ventilation systems. Featuring a 250MM (10 inch) connection, it is well suited to larger hydroponic grow rooms, indoor gardens and high-airflow extraction systems where effective ventilation noise control is required.

Featuring an 85% Noise Reduction Coefficient (NRC), the Phat Silencer uses specialised glass pack acoustic material to absorb and reduce fan and airflow noise. Unlike conventional foam-based acoustic materials that may deteriorate or disintegrate over time, the Phat glass pack provides a durable solution for ongoing sound attenuation.

The lightweight aluminium construction makes the silencer easier to install and suspend while providing resistance to rust. A specially designed 45-degree internal taper before the flanges further assists with sound attenuation while supporting smooth airflow through the ventilation system.

Designed for maximum free-flow air movement, the Phat Inline Silencer helps reduce ventilation noise without unnecessarily restricting airflow through a correctly sized extraction system. This makes the 250MM model particularly suitable for high-airflow inline fans and larger grow room ventilation setups.

The silencer has a non-directional design, allowing air to travel through it in either direction. When using a single muffler, installation on the intake side of the inline fan or blower is recommended for maximum sound attenuation. For additional noise reduction, one Phat Muffler can be installed on the intake and another on the outlet.

For standard installations, the 250MM Phat Muffler should be matched with 250MM ducting and a compatible 250MM inline fan. Suitable self-tapping sheet metal screws or duct tape can be used to create a secure connection, while chain or rope wrapped around the housing can be used for suspended installation.

The Phat Muffler should be kept dry during operation. If exposed to moisture, allow the silencer to dry thoroughly before returning it to normal use.

• 250 x 890MM Size: Full-length silencer designed for compatible 250MM high-airflow ventilation systems.
• 10 Inch Connection: Designed to match compatible 10 inch inline fans, ducting, carbon filters and ventilation accessories.
• 85% Noise Reduction Coefficient: Features an 85% NRC rating for effective attenuation of inline fan and duct airflow noise.
• Glass Pack Acoustic Material: Uses durable glass pack acoustic material designed to resist deterioration and disintegration associated with conventional foam products.
• 45-Degree Internal Taper: Special internal taper before the flanges assists with additional sound attenuation.
• Lightweight Aluminium Construction: Aluminium housing provides a lightweight and rust-resistant construction for easier installation.
• Maximum Free-Flow Air Movement: Designed to provide effective sound attenuation while maintaining efficient airflow through the ventilation system.
• Non-Directional Design: Air can pass through the silencer in either direction for flexible installation.
• High-Airflow Ventilation Compatible: The 250MM connection is suited to larger extraction systems requiring high-volume air movement.
• Intake or Outlet Installation: Suitable for installation on either side of a compatible inline fan or blower.
• Intake Installation Recommended: When using a single muffler, installation on the fan or blower intake is recommended for maximum sound attenuation.
• Dual Muffler Setup: One muffler can be installed on the intake and another on the outlet for additional noise reduction.
• Multiple Mounting Options: Can be attached using suitable self-tapping sheet metal screws or duct tape, or suspended using chain or rope.
• Keep Dry: Designed for dry ventilation applications and should be thoroughly dried if exposed to moisture.

• [1] x Phat Compact Inline Muffler / Silencer - 250MM x 890MM
