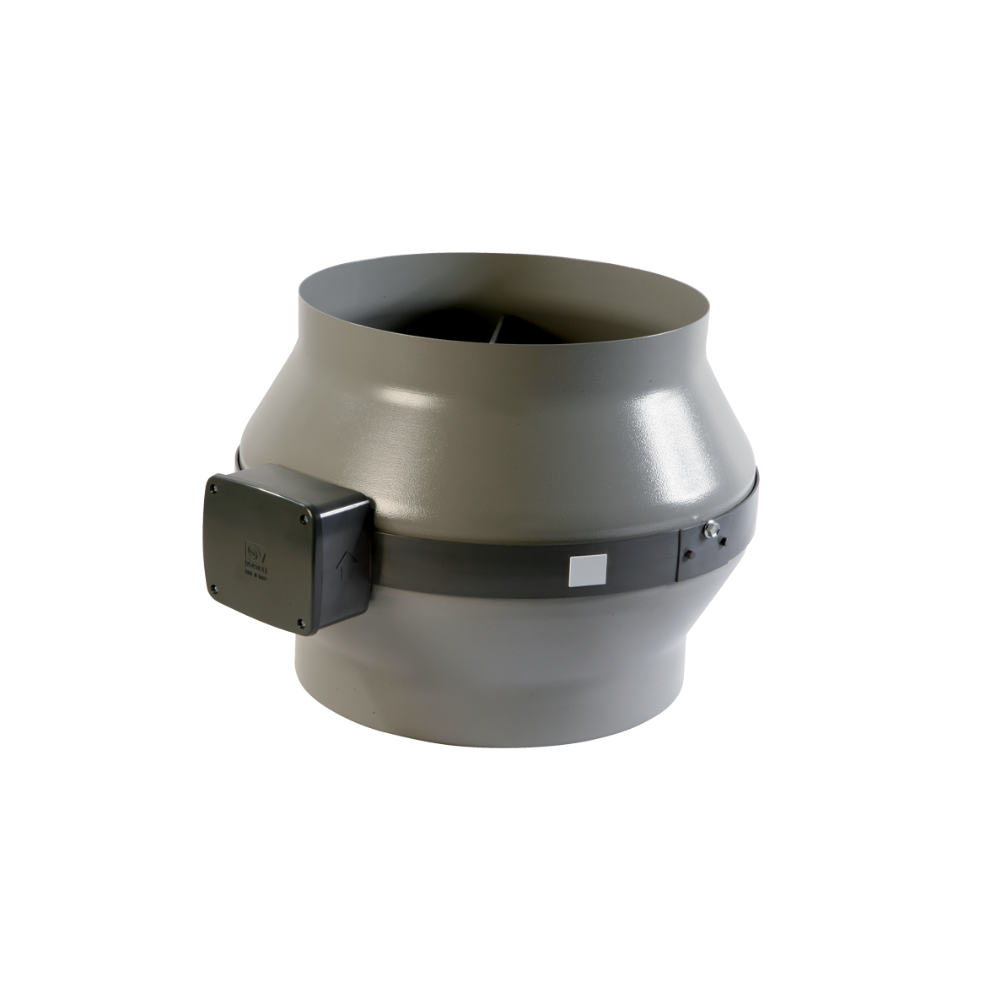

Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 150 MD | 150MM (6" Inch)

The Vortice CA 150 MD is a heavy-duty 150MM (6-inch) in-line centrifugal exhaust fan designed for efficient air extraction across medium to large ducted systems. Constructed from pickled and phosphated steel with a polyester powder-coated finish, it offers superior durability and corrosion resistance - perfect for Australias varied indoor and coastal environments.

With a high-capacity 2-speed AC motor that peaks at 770 m3/h airflow, this unit ensures powerful performance with minimal energy waste. The motor includes a thermal overload cutout and ball bearing-mounted shaft for long-lasting reliability, while the backward curved centrifugal impeller guarantees consistent static pressure for complex ductwork.

Compatible with Vortice control accessories, the fan is adjustable via external speed controllers and supports automated operation through optional temperature, humidity, smoke, and motion sensors. This makes it ideal for both commercial and advanced residential applications requiring responsive and adaptable ventilation.

• Durable Metal Housing: Powder-coated steel body resists rust and aggressive environmental elements
• High Airflow Performance: Moves up to 770 m³/h at just 155W, making it ideal for long duct runs
• Smart Sensor Integration: Ready for temperature, humidity, smoke & motion control via external sensors
• Two-Speed Motor: Optimise ventilation performance based on zone or application demands
• Reliable Operation: Thermal overload protection and ball-bearing shaft ensure extended motor life
• Easy to Mount: Zinc-coated steel wall brackets included
• Quiet Ventilation: Noise levels as low as 40.7 dB(A) at 3m on low speed

• Model - CA 150 MD
• Brand - Vortice
• Nominal Diameter - 150MM (6" Inch)
• Max Air Flow - 770 m³/h
• Power Consumption - 155W (Max Speed)
• Voltage - 220 - 240V
• Motor Type - 2-Speed AC Motor
• Impeller Type - Backward Curved Centrifugal
• RPM Range - 1600 - 2080 RPM
• Sound Pressure at 3m - 40.7 - 48.0 dB(A)
• Max Static Pressure - 530 Pa
• IP Rating - IP44
• Material - Powder-Coated Steel
• Weight - 6.1 kg
• Max Operating Temperature - 50°C
• Mounting Brackets - Included (Zinc-Coated)
• Control Options - Vortice Speed Controllers & Remote Sensors

• [1] x Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 150 MD | 150MM (6" Inch)
