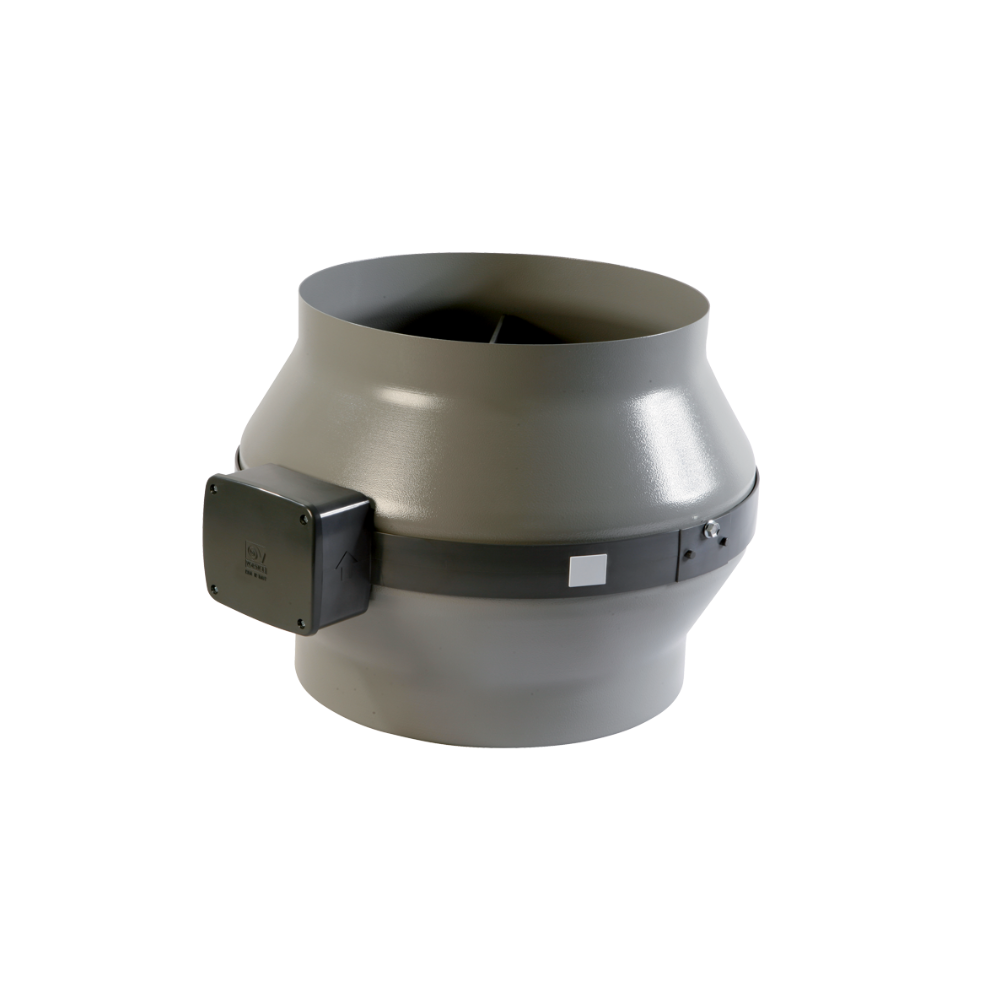

Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 250 MD | 250MM (10" Inch)

The Vortice CA 250 MD is a robust and high-efficiency in-line centrifugal exhaust fan designed for demanding commercial and industrial ventilation systems across Australia. Engineered with a pickled and phosphated steel housing and a durable polyester powder-coated finish, it offers long-term resistance against corrosion and harsh weather exposure.

With a nominal diameter of 250mm, the CA 250 MD delivers a powerful airflow of 1200 m3/h at only 185W power consumption. It features a 2-speed AC motor with thermal overload protection and ball bearings, ensuring long-lasting performance. The backward curved centrifugal impeller generates high static pressure ideal for ducted applications.

Intelligent ventilation control is possible with support for remote sensors including temperature, humidity, smoke, and occupancy detection. The fan is IMQ SAFETY and IMQ PERFORMANCE certified, guaranteeing safe and reliable operation in critical airflow systems.

Zinc-coated wall-mount brackets and compatibility with Vortice speed controllers (sold separately) make it a versatile and user-friendly choice for HVAC contractors and facility managers alike.

• Durable phosphated steel housing with polyester powder coating
• 250mm nominal diameter – perfect for mid-to-large ducted systems
• High airflow: up to 1200 m³/h
• Quiet operation with sound pressure as low as 36 dB(A) at min speed
• 2-speed AC motor with backward curved impeller and overload protection
• Remote control capability via sensors: temperature, humidity, smoke, presence
• IMQ SAFETY and IMQ PERFORMANCE certified
• Speed adjustable via optional Vortice controllers
• Zinc-coated steel brackets for secure wall mounting

• Model - CA 250 MD
• Brand - Vortice
• Voltage - 220-240V
• Frequency - 50 Hz
• Nominal Diameter - 250 mm
• Max Airflow - 1200 m³/h
• Airflow at 1st Speed - 915 m³/h
• Max Power Consumption - 185 W
• Power at 1st Speed - 140 W
• Max Current - 0.80 A
• Min Current - 0.60 A
• IP Rating - IP44
• Insulation Class - II
• Max Ambient Temp - 50°C
• Max Pressure - 583.5 Pa
• Sound Pressure (Min/Max) - 36 / 43.3 dB(A) at 3m
• Speed Control - Available (optional)
• Certifications - IMQ Safety, IMQ Performance, EAC, G-Mark
• Weight - 7.6 kg
• Mounting - Zinc-Coated Wall Brackets

• [1] x Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 250 MD | 250MM (10" Inch)
