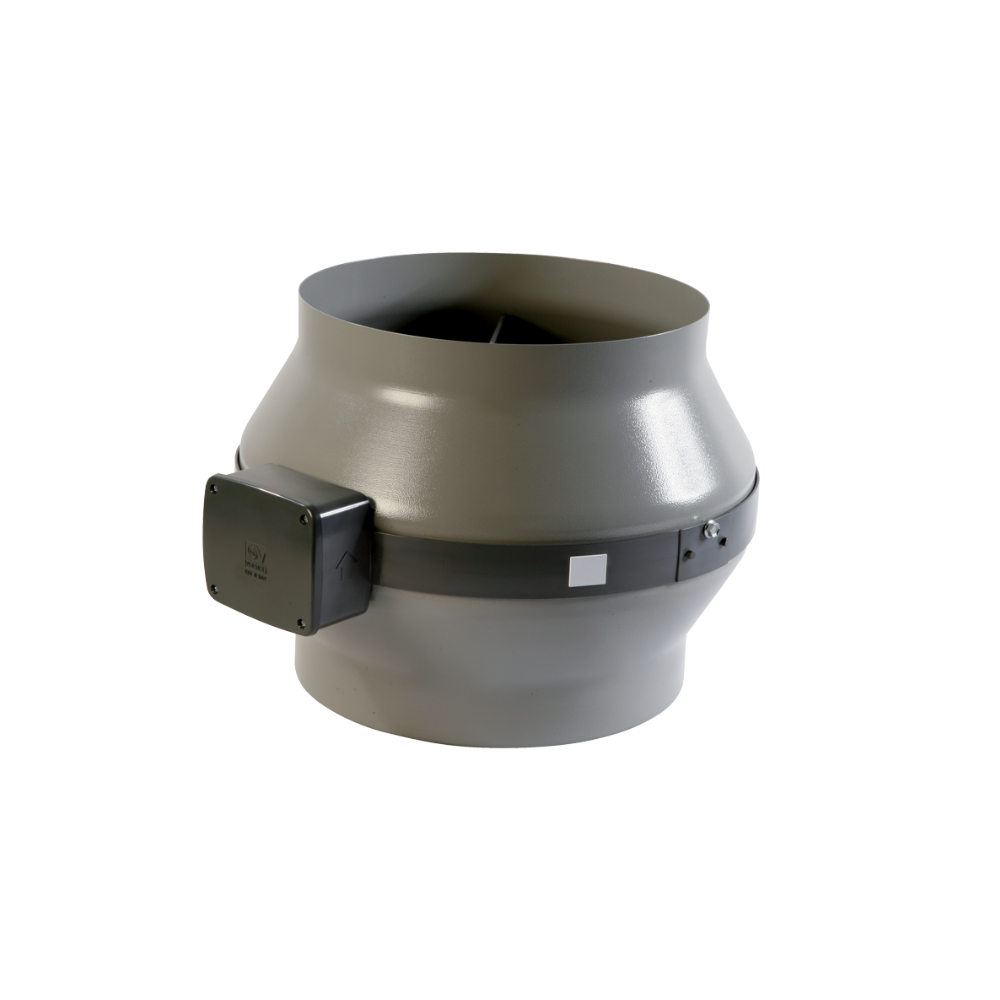

Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 315 MD | 315MM (12" Inch)
Air Flow 1735 M³/H | Power Consumption 300W | IP44
Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 3...
Product Overview
| Airflow (M³/H) | 1735 |
| Power | 300 |
| Motor Type | AC |
| Noise Level | 72.9 dBA at 3M |
| IP Rating | IP44 |
| Run On Timer | No |
Description
Description
The Vortice CA 315 MD is a premium in-line centrifugal exhaust fan, expertly engineered for high-demand commercial and industrial ventilation systems. Its rugged pickled and phosphated steel housing, finished in polyester powder coating, provides excellent resistance to corrosion and aggressive atmospheric agents - perfect for Australian environments.
This powerful unit features a 315mm nominal diameter, delivering a peak airflow of 1735 m3/h and operating with a 300W dual-speed AC motor equipped with thermal overload cutout. Designed with a backward curved centrifugal impeller and ball bearing-supported shaft, it excels in ducted systems requiring reliable static pressure and low noise.
The CA 315 MD is sensor-compatible - allowing automated response to temperature, humidity, smoke, and presence detection - and is also speed adjustable via optional Vortice controllers. Certified with IMQ SAFETY and IMQ PERFORMANCE, it guarantees trusted performance in critical airflow applications.
Features
Features
- 315mm nominal diameter - suited for large-scale ducted systems
- Durable, anti-corrosive powder-coated steel casing
- High airflow capacity: up to 1735 m³/h
- Quiet operation: breakout sound pressure from 36.9 dB(A) to 44.6 dB(A)
- Dual-speed AC motor with thermal overload protection
- Backward curved centrifugal impeller for high pressure and airflow
- Sensor-compatible: temperature, humidity, smoke, and occupancy
- Certified with IMQ SAFETY and IMQ PERFORMANCE
- Speed control compatible (Vortice controllers sold separately)
- Wall-mount brackets included (zinc-coated)
Specifications
Specifications
| Model | CA 315 MD |
|---|---|
| Brand | Vortice |
| Voltage | 220–240V |
| Frequency | 50 Hz |
| Nominal Diameter | 315 mm |
| Max Airflow | 1735 m³/h |
| Airflow at 1st Speed | 1330 m³/h |
| Max Power Consumption | 300 W |
| Power at 1st Speed | 210 W |
| Max Current | 1.30 A |
| Min Current | 0.90 A |
| IP Rating | IP44 |
| Insulation Class | II |
| Max Ambient Temp | 40°C |
| Max Pressure | 671.8 Pa |
| Sound Pressure (Min/Max) | 36.9 / 44.6 dB(A) at 3m |
| Speed Control | Available (optional) |
| Certifications | IMQ Safety, IMQ Performance, EAC, G-Mark |
| Weight | 11 kg |
| Mounting | Zinc-Coated Wall Brackets |
What's in the box
What's in the box
- [1] x Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 315 MD | 315MM (12" Inch)
Downloads
Downloads
- Specification Sheet - Click Here
- Product Manual - Click Here
