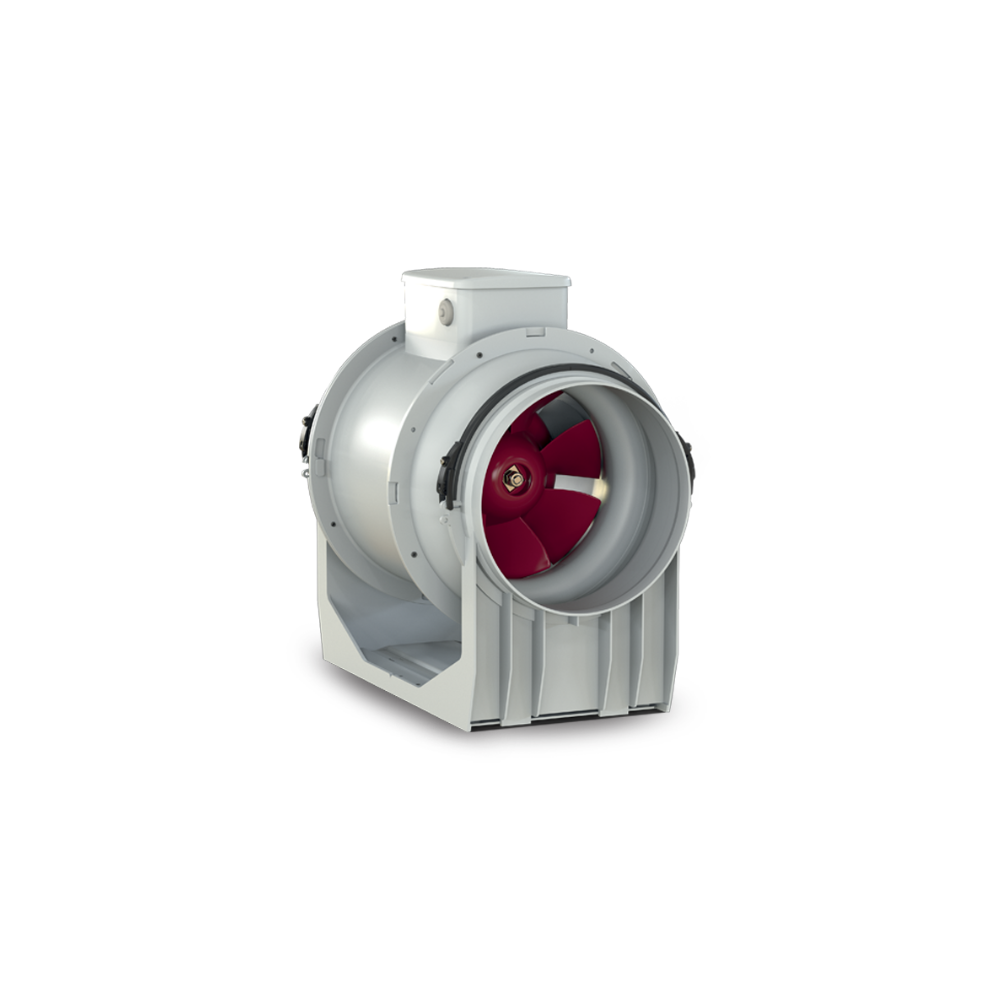

Vortice Lineo Inline Mixed Flow AC Fan - Lineo 150 | 150MM (6" Inch)
Air Flow 550 M³/H | Power Consumption 58W | IP44
Vortice Lineo Inline Mixed Flow AC Fan - Lineo 150 | 150MM (6"...
Product Overview
| Model Number | Lineo 150 |
| Airflow (M³/H) | 550 |
| Duct Flange Size | 150MM (6" Inch) |
| Motor Type | AC |
| Exhaust Fan Power (W) | 58 |
| Noise Level | 47.4 dBA at 3M |
| IP Rating | IP44 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | 2-Speed |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Vortice - 2 Years replacement warranty* |
Description
Description
The Vortice Lineo Inline Mixed Flow AC Fan - Lineo 150 is a high-performance inline ventilation solution designed for both residential and commercial applications in Australia. Engineered with a 150mm nominal diameter and advanced mixed-flow technology, this fan delivers a maximum airflow of 550 m3/h while maintaining low noise levels. Built with fire-resistant E2 class plastic resin in accordance with ISO EN 11925-2:2010, it ensures enhanced safety in areas close to the motor and electrical components.
The unit features a thermally protected induction motor with ball bearing supports for long-lasting reliability, paired with a centrifugal impeller for efficient airflow. With a high water resistance rating of IPX5 when installed in ductwork, its suitable for demanding environments. Airflow speed can be conveniently adjusted using compatible Vortice speed controllers, giving you complete control over performance and energy consumption.
Ideal for bathrooms, kitchens, laundries, grow rooms, and commercial exhaust systems, the Vortice Lineo 150 is a versatile choice for any ventilation setup where consistent airflow and quiet operation are essential.
Features
Features
- Robust Fire-Resistant Housing - Made from E2 class plastic resin to ISO EN 11925-2:2010 standards.
- 150mm Nominal Diameter - Suitable for standard duct sizes.
- High-Performance Induction Motor - Thermally protected with ball bearing supports for durability.
- IPX5 Water Resistance - Protection against water ingress when installed in ductwork.
- Adjustable Speed Control - Compatible with Vortice speed control devices for custom airflow settings.
- Low Noise Operation - Sound pressure of just 35 dB(A) at 3 metres on maximum speed.
- Lightweight & Easy to Install - Compact design at only 2.5 kg.
Specifications
Specifications
| Model | Vortice Lineo 150 |
|---|---|
| Nominal Diameter | 150 mm |
| Voltage | 220-240 V |
| Frequency | 50 Hz |
| Max Airflow | 550 m³/h |
| Airflow (Low Speed) | 385 m³/h |
| Power Consumption (Max) | 58 W |
| Power Consumption (Low) | 40 W |
| Current (Max) | 0.26 A |
| Noise Level @ 3m (Max) | 35 dB(A) |
| Noise Level @ 3m (Low) | 24.9 dB(A) |
| Max Pressure | 264.9 Pa |
| Insulation Class | Class II |
| IP Rating | IP44 |
| Max Operating Temperature | 60°C |
| Weight | 2.5 kg |
What's in the box
What's in the box
- [1] x Vortice Lineo Inline Mixed Flow AC Fan - Lineo 150 | 150MM (6" Inch)
