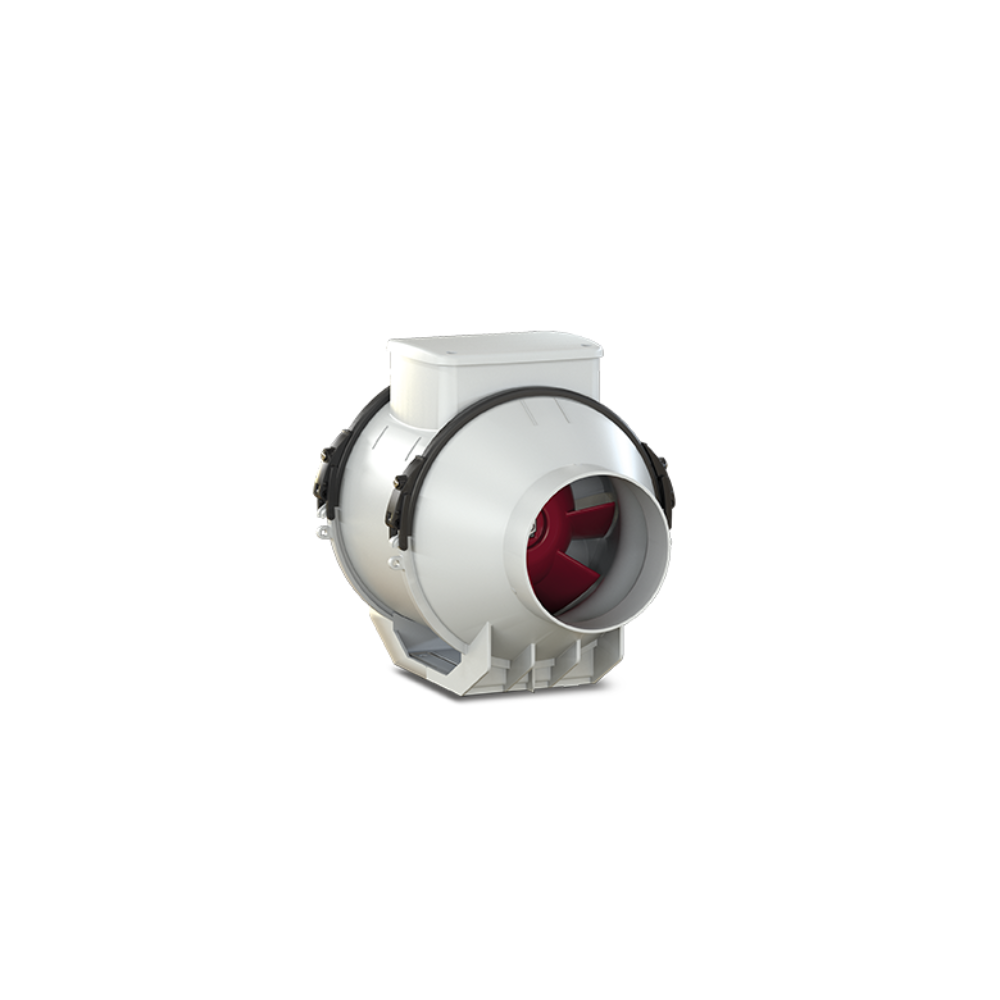

Vortice Lineo Inline Mixed Flow AC Fan - Lineo 100 | 100MM (4" Inch)

The Vortice Lineo 100 is a high-performance, inline mixed-flow AC fan designed for efficient ventilation in residential, commercial, and light industrial settings. Featuring a compact 100mm nominal diameter and an airflow capacity of up to 255 m3/h, this fan is ideal for ducted installations requiring reliable air movement with minimal noise. Its robust enclosure is made from fire-resistant E2 class plastic resin, compliant with ISO EN 11925-2:2010, ensuring durability and safety in areas near motors and electrical components. The thermally protected induction motor is mounted on ball bearing supports and coupled with a centrifugal impeller for long-lasting performance. With an IPX5 rating when installed in a duct, the Lineo 100 offers excellent water resistance and can be speed-controlled via compatible Vortice devices, making it versatile for different ventilation needs.

• Fire-Resistant Construction: Enclosure made from E2 class plastic resin, compliant with ISO EN 11925-2:2010 for safety near electrical components.
• Compact 100mm Diameter: Designed to suit standard duct sizes for easy integration into existing systems.
• High-Performance Motor: Induction motor with thermal protection and ball bearing supports for reliability.
• Strong Airflow: Maximum airflow of 255 m³/h for efficient ventilation performance.
• Water Resistance: IPX5 rating when installed in a duct, ideal for moisture-prone areas.
• Adjustable Speed: Compatible with Vortice speed control devices for customised performance.
• Quiet Operation: Low noise output with a sound pressure level of just 29.5 dB(A) at maximum speed from 3m.

• Model - Vortice Lineo 100
• Nominal Diameter - 100 mm
• Airflow (Max) - 255 m³/h
• Airflow (1st Speed) - 180 m³/h
• Max Pressure - 161.9 Pa
• Power Consumption (Max) - 23 W
• Power Consumption (1st Speed) - 20 W
• Voltage - 220-240 V
• Frequency - 50 Hz
• Current (Max) - 0.11 A
• Noise Level @ 3m (Max) - 29.5 dB(A)
• Insulation Class - II
• IP Rating - IPX5 (in duct)
• Weight - 2 kg
• Max Operating Temp - 60 °C
• Dimensions (A x B x C) - 188.5 x 211 x 303 mm
