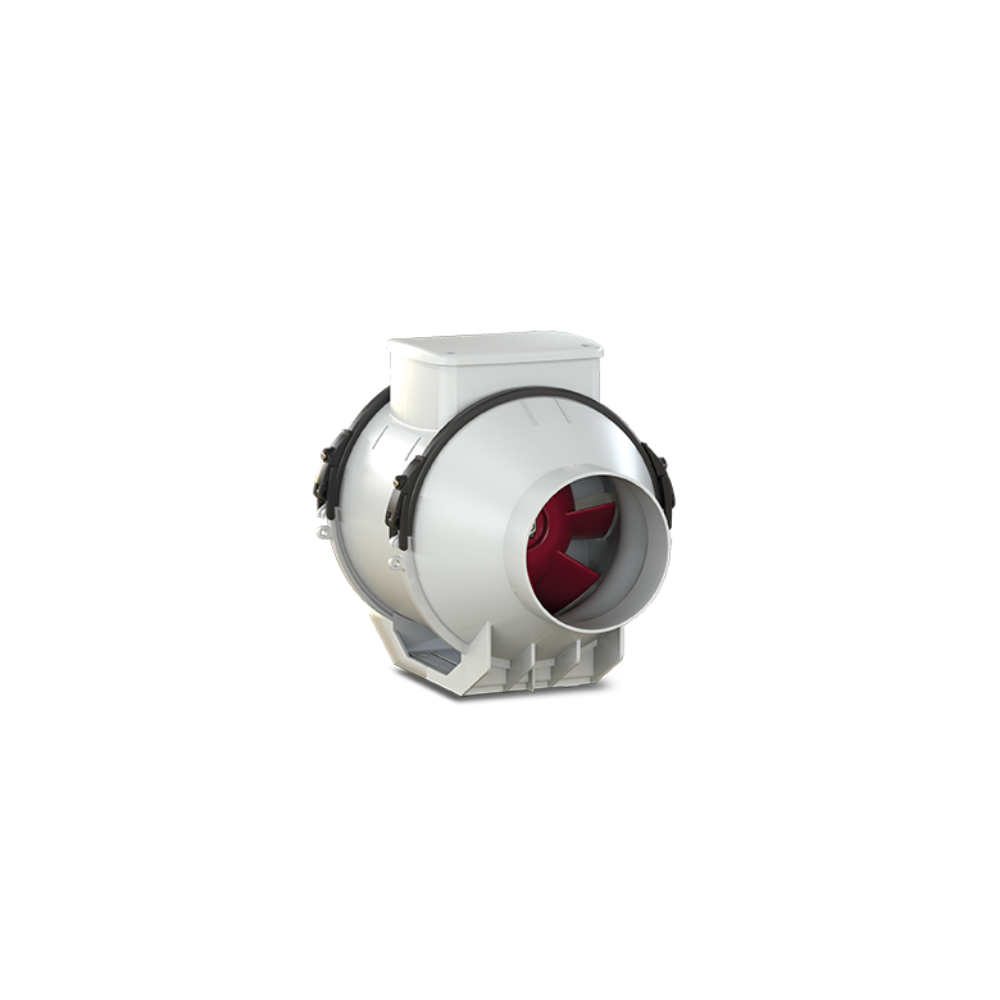

Vortice Lineo Inline Mixed Flow EC Fan - Lineo 100 ES | 100MM (4" Inch)

The Vortice Lineo 100 ES Inline Mixed Flow EC Fan is a high-efficiency, energy-saving ventilation solution designed for residential, commercial, and industrial applications. Featuring a 100mm nominal diameter and a powerful EC (brushless) motor mounted on ball bearings, it delivers superior airflow performance with minimal energy consumption. The fire-resistant plastic resin housing (E2 class, ISO EN 11925-2:2010) ensures maximum safety, particularly in areas close to the motor and electrical components. This unit offers IP45 water resistance (up to IPX5 when installed in ducting) for reliable operation in demanding environments.

Equipped with a thermal fuse overheating protection device and adjustable speed control via potentiometer (0 - 10V) or two-speed switch, the Vortice Lineo 100 ES is built for flexibility and longevity. With a maximum airflow of 305 m3/h and whisper-quiet operation, this fan is the ideal choice for applications requiring efficient, safe, and continuous ventilation.

• Energy Efficient EC Motor - Brushless design with low power consumption (max 20W) and thermal protection.
• Compact 100mm Diameter - Perfect for space-saving installations in ducts or confined areas.
• Durable Fire-Resistant Housing - E2 class resin compliant with ISO EN 11925-2:2010.
• High Water Resistance - IP45 rating (IPX5 in duct installations) for demanding environments.
• Adjustable Speed Control - Potentiometer (0 - 10V) or two-speed switch for flexible airflow management.
• Low Noise Levels - Quiet operation with sound pressure as low as 15 dB(A) at 3m.
• Thermal Safety Protection - Integrated fuse to prevent overheating and damage.

• Nominal Diameter - 100mm
• Max Airflow - 305 m³/h
• Voltage - 220-240V
• Frequency - 50Hz
• Max Power - 20W
• Max Current - 0.20A
• Insulation Class - Class II
• IP Rating - IP45 (IPX5 in duct)
• Max Ambient Temperature - 60°C
• Weight - 2.3 kg
• RPM - 2220 (max)
• Noise Level at 3m - 31.8 dB(A) at max speed
• Housing Material - Fire-resistant plastic resin (E2 class)

• [1] x Vortice Lineo Inline Mixed Flow EC Fan - Lineo 100 ES | 100MM (4" Inch)
