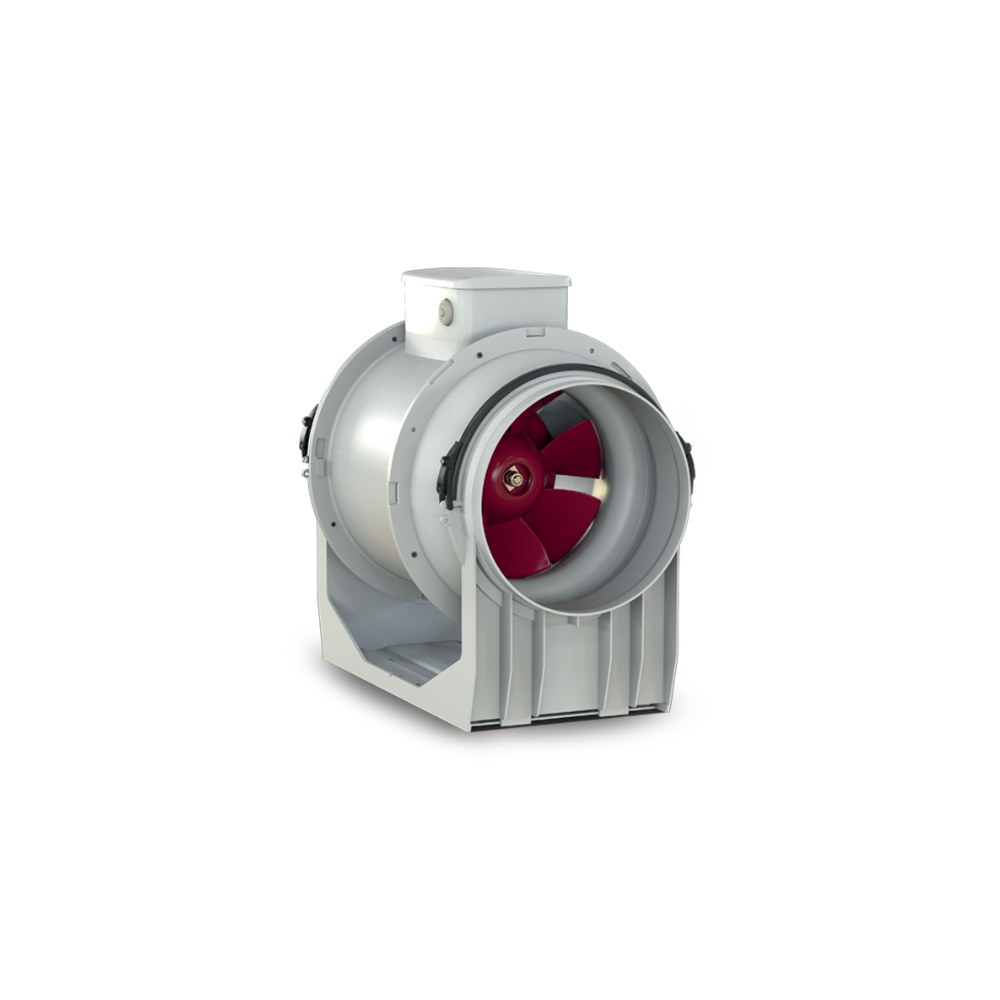

Vortice Lineo Inline Mixed Flow EC Fan - Lineo 150 ES | 150MM (6" Inch)

The Vortice Lineo 150 ES Inline Mixed Flow EC Fan is a high-performance, energy-efficient ventilation solution designed for professional and residential applications. With a 150mm nominal diameter and an advanced EC (brushless) motor mounted on ball bearings, it delivers a maximum airflow of 590 m3/h while maintaining low energy consumption and quiet operation. The units fire-resistant plastic resin housing (E2 class, ISO EN 11925-2:2010) provides superior safety, especially around motor and electrical components.

Engineered for durability, the Vortice Lineo 150 ES has an IP45 water resistance rating (IPX5 in duct installations), making it ideal for challenging environments. Its speed can be easily adjusted via a potentiometer (0 - 10V) or two-speed switch, allowing precise airflow control. Equipped with a thermal fuse overheating protection device, this inline fan ensures safe and reliable operation, making it perfect for both continuous and demand-based ventilation systems.

Features

• High-Efficiency EC Motor Brushless technology with low running costs and thermal protection.
• Large 150mm Diameter Designed for high airflow applications in residential, commercial, or industrial settings.
• Durable Fire-Resistant Housing - E2 class material compliant with ISO EN 11925-2:2010.
• Superior Water Resistance - IP45 rating (IPX5 in duct) for reliable use in demanding conditions.
• Adjustable Speed Control - Potentiometer (010V) or two-speed switch for flexible operation.
• Low Noise Output - Quiet performance with only 21 dB(A) at 3m on low speed.
• Safety Assured - Built-in thermal fuse to prevent overheating.

• High-Efficiency EC Motor – Brushless technology with low running costs and thermal protection.
• Large 150mm Diameter – Designed for high airflow applications in residential, commercial, or industrial settings.
• Durable Fire-Resistant Housing - E2 class material compliant with ISO EN 11925-2:2010.
• Superior Water Resistance - IP45 rating (IPX5 in duct) for reliable use in demanding conditions.
• Adjustable Speed Control - Potentiometer (0–10V) or two-speed switch for flexible operation.
• Low Noise Output - Quiet performance with only 21 dB(A) at 3m on low speed.
• Safety Assured - Built-in thermal fuse to prevent overheating.

• Nominal Diameter - 150mm
• Max Airflow - 590 m³/h
• Voltage - 220-240V
• Frequency - 50-60Hz
• Max Power - 55W
• Max Current - 0.50A
• Insulation Class - Class II
• IP Rating - IP45 (IPX5 in duct)
• Max Ambient Temperature - 60°C
• Weight - 2.6 kg
• RPM - 2480 (max)
• Noise Level at 3m - 41.9 dB(A) at max speed
• Housing Material - Fire-resistant plastic resin (E2 class)

• [1] x Vortice Lineo Inline Mixed Flow EC Fan - Lineo 150 ES | 150MM (6" Inch)
